Features #
- This product is made by 2.4G wireless transmitting technology with low consumption and strong ability to resist signal loss
- Support 2.4G remote control
- 16 Millions color / Color temperature / Brightness / saturation dimmable
- Support DND mode
Parameters #
| Model No. | FL50 | FL100 | FL200 |
| Input Voltage | AC100-240V | AC200-240V | |
| Rated Current(Max) | 0.56A | 1.1A | 2.1A |
| Power | 50W | 100W | 200W |
| Standby Power Consumption | 0.5W | ||
| PF | >0.9 | ||
| CRI | >80 | ||
| Color Temperature | 2700K-6500K | ||
| Luminous Flux | 4800LM | 10000LM | 18400LM |
| Luminous Efficiency | 96LM/W | 100LM/W | 90LM/W |
| Illumination Distance | 25m | 35m | 50m |
| Beam Angle | 160° | ||
| RF | 2.4GHz | ||
| Control Distance | 30m | ||
| Working Temperature | -20~45°C | ||
| Lamp Body Material | Die-cast Aluminum + Tempered Glass | ||

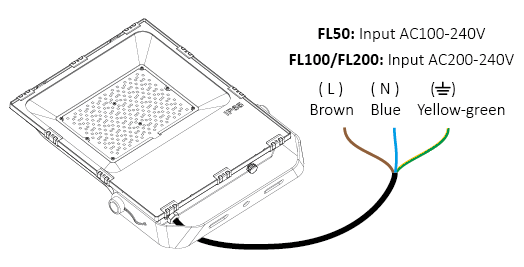

Connection Diagram #
Attention
1. Please cut off power before wiring device.
2. Please check the voltage of power before connecting.
3. It’s high voltage product which need to wire ground line.
Linking Code #

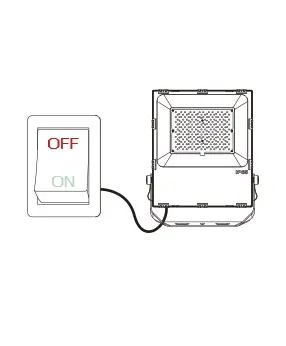

1. Power off
2. Turn on the light after 10 seconds
3. Short press “ I ” 3 times within 3 seconds
Linking code is done if the lights flashes 3 times slowly.
Don’t use “Master ON” to link code. You only can link lights into one zone on one remote.
Cleaning Code #
1. Power off
2. Turn on the light after 10 seconds
3. Short press “ I ” 5 times within 3 seconds
Cleaning code is done if the lights flashes 6 times quickly.
Dynamic Mode List #
Attention: brightness, saturation and speed are dimmable
| No. | Dynamic mode |
| 1 | Automatical color changing |
| 2 | RGB gradual changing |
| 3 | Color changing randomly |
| 4 | Seven color jumping |
| 5 | Color jumping randomly |
| 6 | Volcano red |
| 7 | Forest green |
| 8 | Ocean blue |
9 | Three color jumping and gradual changing |
Mini Brightness #
- Long press “
” or “
” 6S in any group zones until lighting fixture flashes one time (step out automatically if remote don’t be operated within 5S). - Short press “ ” or “ ” in group zone to set up 10 kinds of brightness level ( 1%, 5%, 10%, 15%, 20%, 25%, 30%, 35%, 40%, 50%).
Short press any button except “OFF” to confirm or step out setting, the master “OFF”can set up all features.
ON/OFF Time #
The light status changes gradually (factory default time is 0.5s).
1.5s: Short press “ON” 1 times and short press “OFF” 5 times within 3 seconds, the setting is done once light flashes 2 times slowly.
0.5s: Short press “OFF” 1 times and short press “ON” 5 times within 3 seconds, the setting is done once light flashes 2 times quickly.
Attention #
- The lighting fixtures will be heating on working, please do not cover the lighting housing.
- Don’t disassemble it if you are not expert.
- Don’t use it in metallic or magnetic area.
