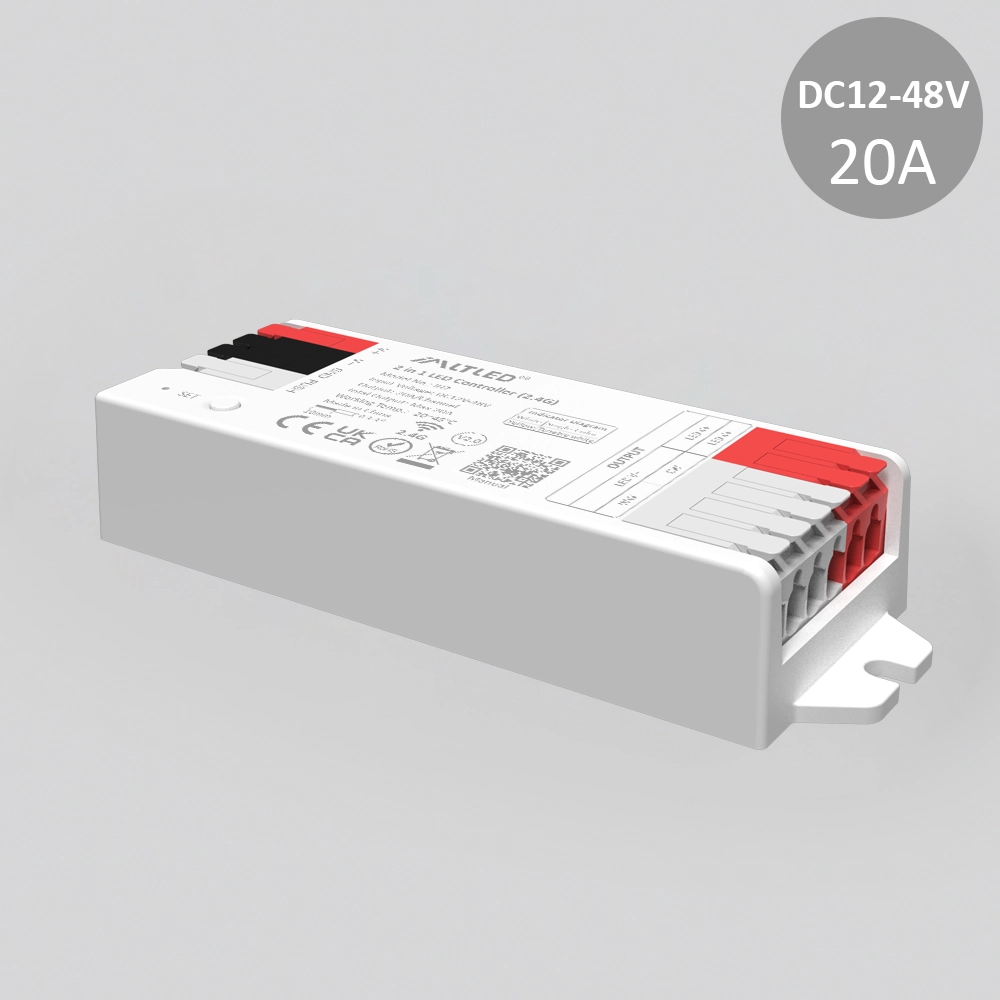

2 in 1 LED Controller(2.4G)
2 kinds of output mode support 2 LED strip (Single color / Tunable white)
LED vezérlő
Functional Features
4096-Level Dimming
Delivers ultra-fine, flicker-free adjustment for seamless and comfortable lighting transitions.
PWM Frequency Setting
Minimize power supply noise by tuning the PWM frequency. Supported frequencies: 250Hz / 2KHz / 4KHz / 8KHz
DND Mode
Intelligently remembers your light settings. In case of sudden power loss, your lights return to their previous state once power is restored, saving energy and giving you peace of mind.
Overheat Protection
Real-time temp monitoring with auto power adjustment for safe operation.
Távirányító
Functional Features
4 DIY Scenes
Fully save your lights on/off status, color, brightness, and dynamic modes. Recall any preset scene with a single tap, like Movie Mode, Reading Mode, or Sleep Mode, for effortless ambiance control.
Minimum Brightness Setting
Supports 1%–50% minimum brightness setting
DIY Fade-in/Fade-out Time
Supports customizable fade-in/fade-out time from 0–3 seconds, creating a comfortable lighting experience.
2.4 GHz RF Remote Control
Stable 30 m signal with no delay — works through walls.
Automatic Signal Forwarding (2.4 GHz RF Remote Only)
The controller can automatically forward received remote signals to other controllers within a 30 m range, enabling signal relay. The remote control range can be continuously extended.
PUSH dimming
Support “PUSH” switch dimming, one-button on/off, long press to adjust brightness
Parameters

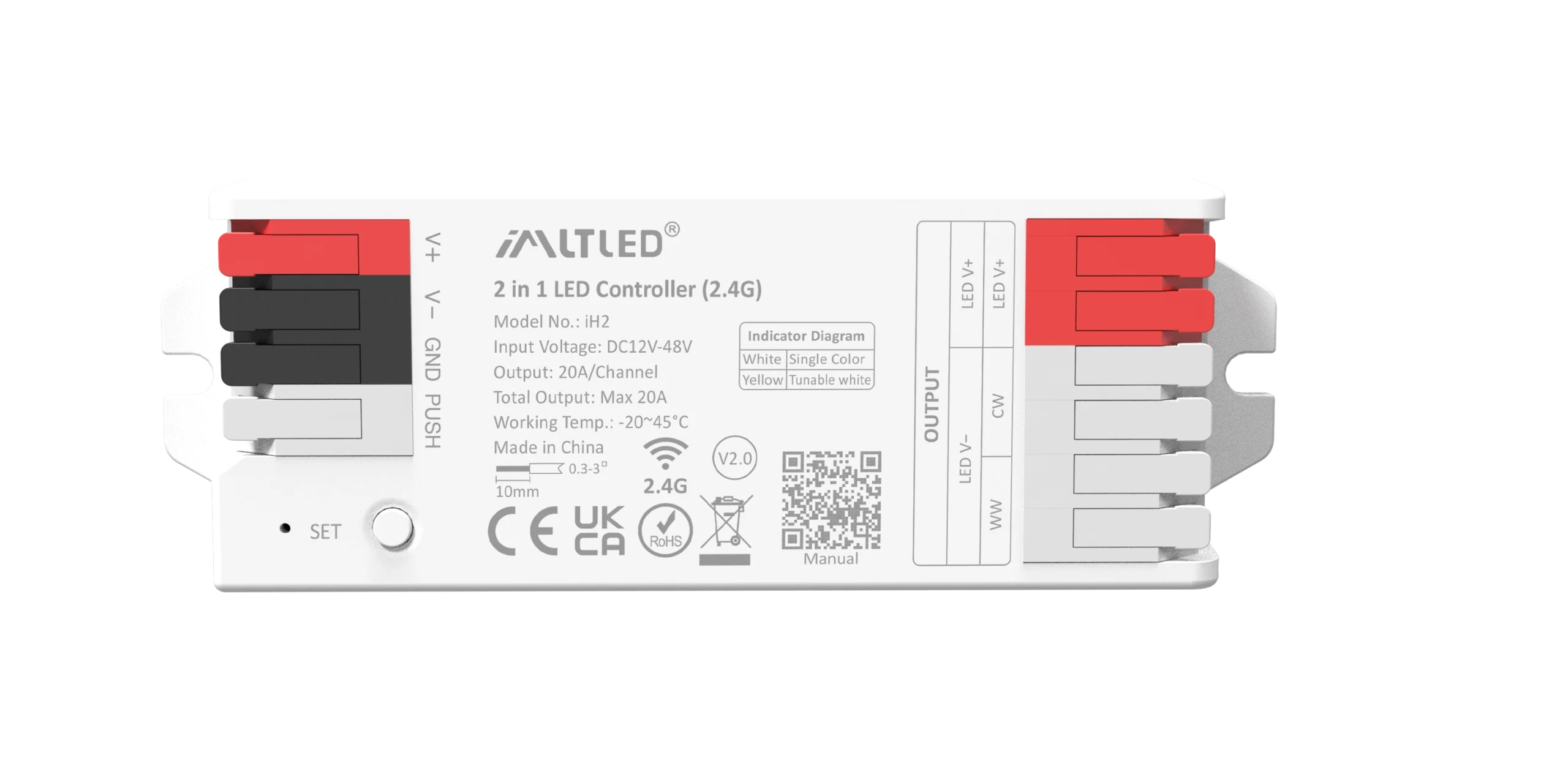

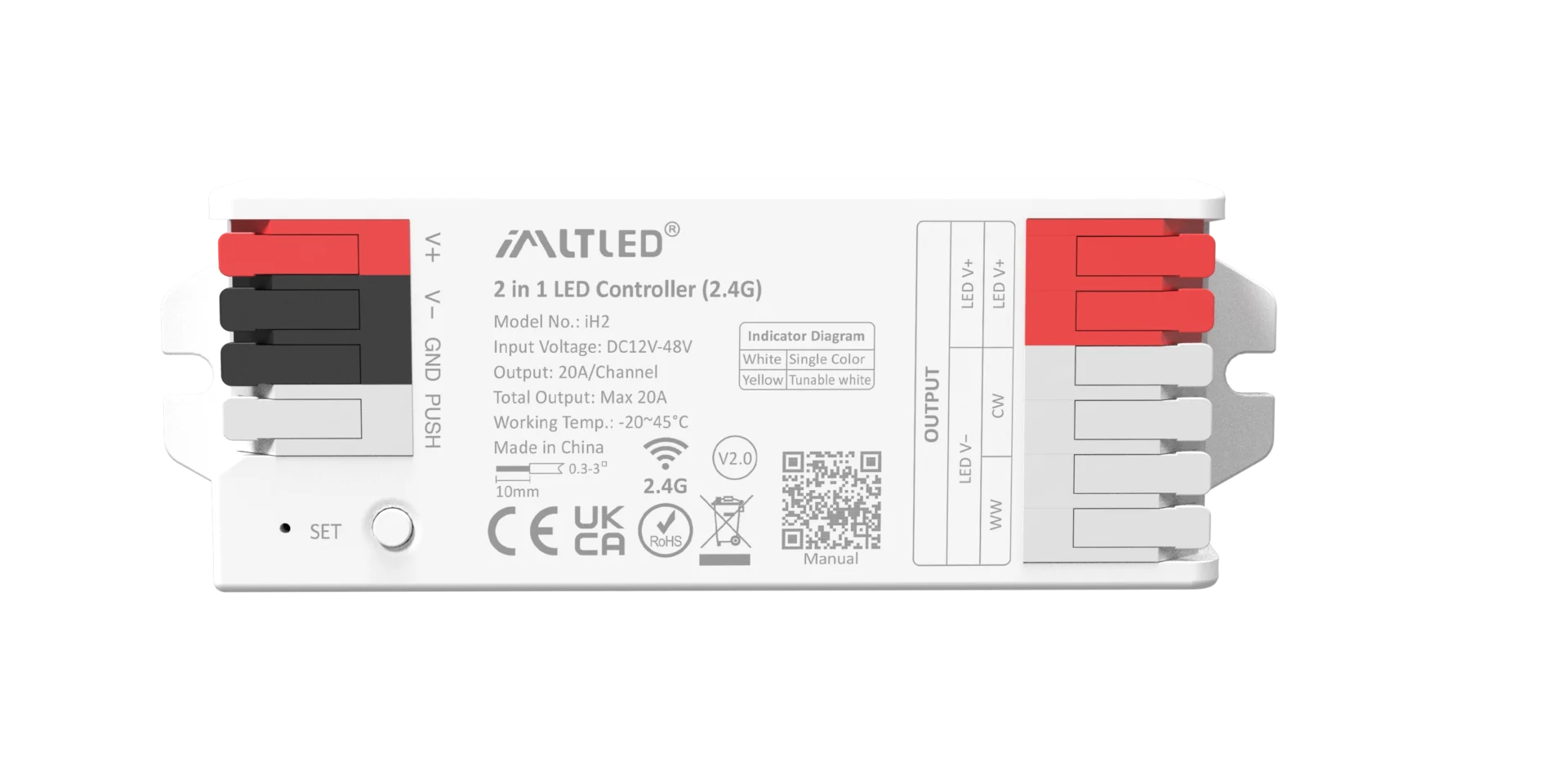

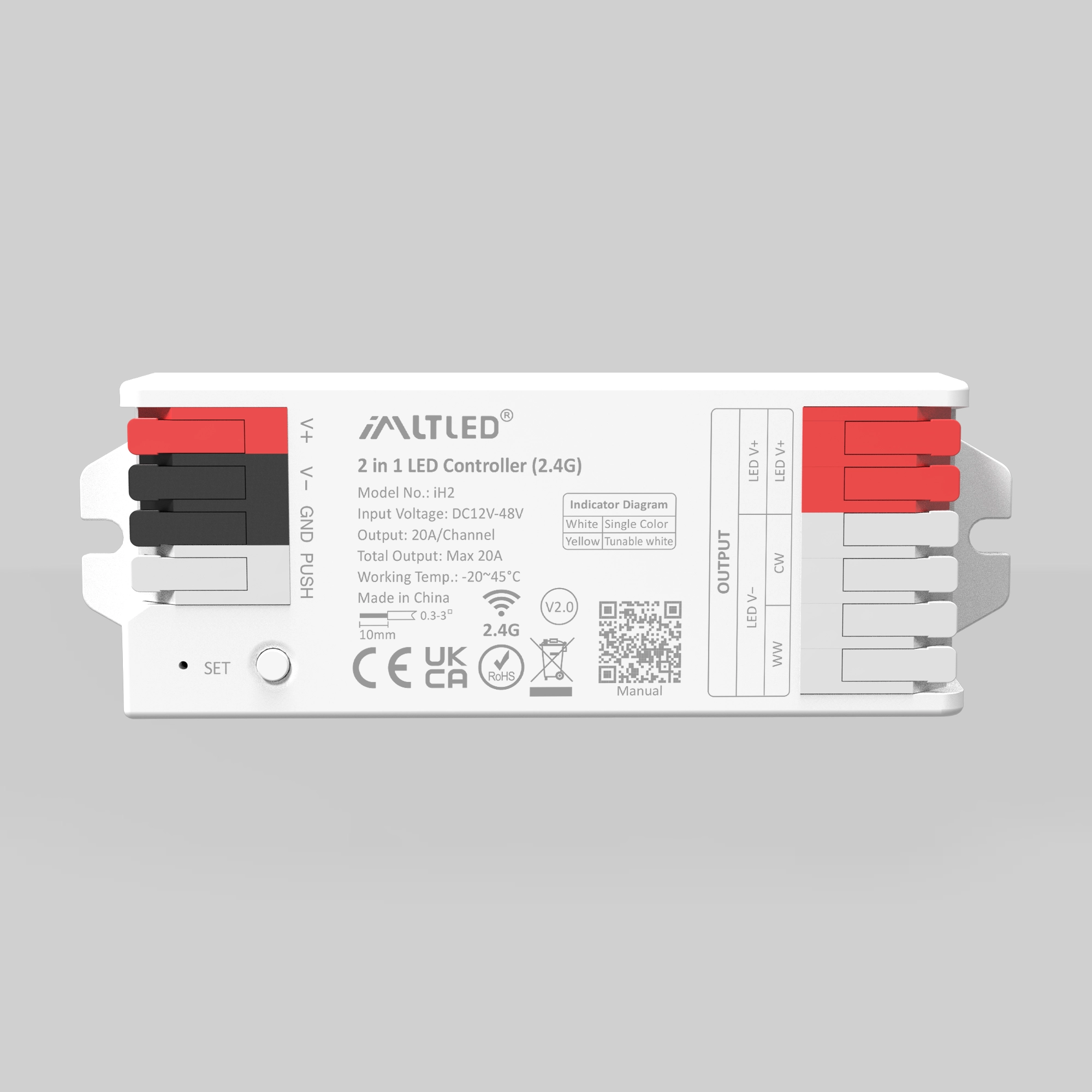

| Product Name: | 2 az 1-ben LED vezérlő (2.4G) |
| Model No.: | iH2 |
| Input Voltage: | DC12-48V |
| Output: | Max 20A |
| Communication Protocol: | 2.4GHz |
| Output type: | Constant voltage |
| 2.4G RF Control Distance: | 30m |
| Waterproof Rating: | IP20 |
| Working Temperature: | -20~45°C |
Connection Diagram
For single color LED strip(short press “SET”–White indicator)
Input: DC12V-48V
For Tunable white LED strip(short press “SET”–Yellow indicator)
Input: DC12V-48V
