Features #
- RGB, Saturation Color temperature, Brightness dimmable
- 2.4G RF wireless transmission technology
- Control distance 30m
- 4 Zones individual control, countless lights in each zone
- Support to save 4 scenes
Parameters #
| Product Name | 4-Zone RGB+CCT Remote (2.4G) |
| Model No. | HR02 / HR02B |
| Battery | 3V (CR2032*2PCS) |
| Standby Power Consumption | 8μA |
| Transmitting Power | 6dBm |
| RF | 2.4GHz |
| Control distance | 30m |
| Working temperature | -20~45°C |

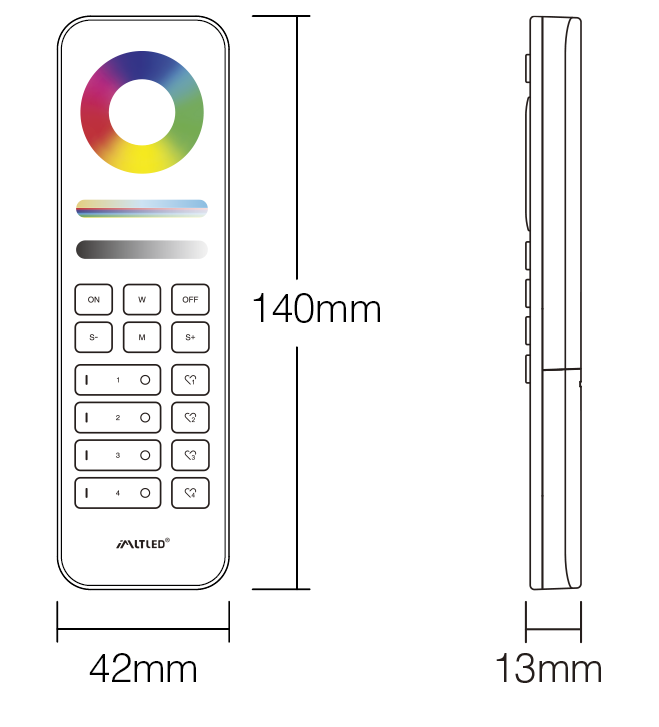

| Product Size | 140*42*13mm (L*W*H) |
Battery Installation #
User need to buy battery separately, please pay attention to battery “ + ” and “ – ”
Key Description #
Short Press: Turn on light
Long Press 2S: Maximum brightness
Short Press: Turn off light
Long Press 2S: Activate night light mode
Short press: Activate scenes
Long press: Save scenes
Touch the color ring to change colors.
Under white light mode, adjust color temperature;
Under color light mode, change color saturation.
Slider to adjust the brightness.
Short press once to white light mode.
Press “W” button continuously to lock/unlock the touch slider.
| Press “W” | 10 times | 15 times | 20 times |
| Lock/unlock | Release Locking | Lock RGB Slider | Lock all Slider |

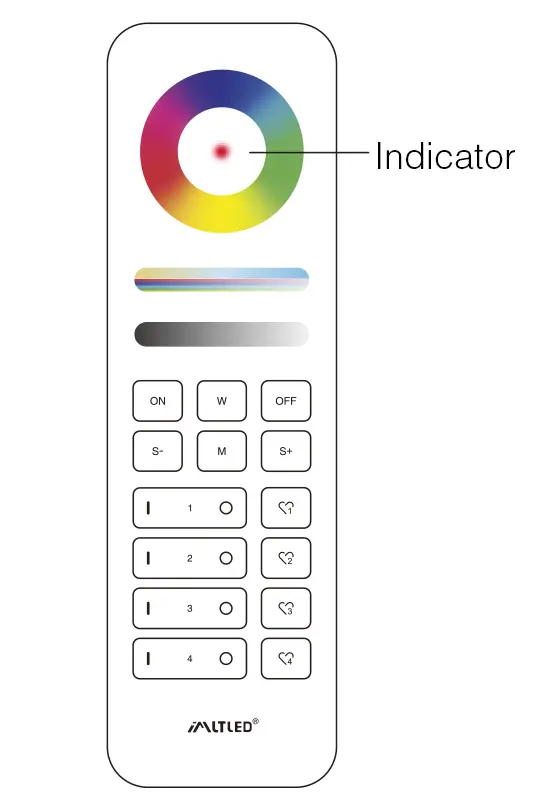

| Remote Indicator | flashes 3 times quickly | flashes 6 times quickly | flashes 3 times slowly |
Dynamic mode switching button.
Increase the speed of dynamic mode.
Decrease the speed of dynamic mode.
Linking Code #
1. Power off
2. Turn on the light after 10 seconds
3. Short press “ I ” 3 times within 3 seconds
Linking code is done if the lights flashes 3 times slowly.
Don’t use “Master ON” to link code. You only can link lights into one zone on one remote.
Cleaning Code #
1. Power off
2. Turn on the light after 10 seconds
3. Short press “ O ” 5 times within 3 seconds
Cleaning code is done if the lights flashes 6 times quickly.

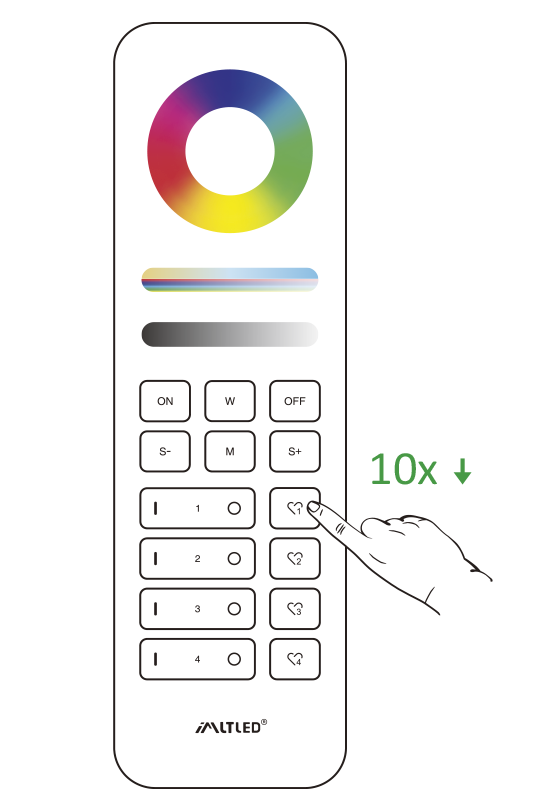

Copying Function #
The remote have copying function. It can copy linking data from other remote. Users don’t need to link current remote if copying data successfully.
” 10 times continuously
Clean Copying #
Press ”
” continuously 15 times until indicator flashes 6 times.
Time Setting (ON/OFF light) #
0.5S: Press ”
” 10 times continuously until the light flashes 2 times.
1.5S: Press ” ” 15 times continuously until the light flashes 2 times.
DND Mode ( ON/OFF) #
ON: Press ”
” 10 times continuously until the light flashes 4 times quickly.
OFF: Press ” ” 15 times continuously until the light flashes 4 times slowly.
PWM Frequency (High/Low) #
High: Press ”
” 10 times continuously until the light flashes 1 times.
Low: Press” ” 15 times continuously until the light flashes 1 times.
Attention: The different frequency can avoid the beeping noise from mains.
Mini Brightness #
- Long press “
” or “
” 6S in any group zones until lighting fixture flashes one time (step out automatically if remote don’t be operated within 5S). - Short press “ ” or “ ” in group zone to set up 10 kinds of brightness level ( 1%, 5%, 10%, 15%, 20%, 25%, 30%, 35%, 40%, 50%).
Short press any button except “OFF” to confirm or step out setting, the master “OFF”can set up all features.
Attention #
- Pay attention to battery “ + ” and “ – ” while doing installation.
- It’s better to remove battery if you don’t use remote frequently.
- Don’t use remote near metal or magnetic area.
