Features #
- This product is made by 2.4G wireless transmitting technology with low consumption and strong ability to resist signal loss.
- Support 2.4G remote, 16 millions color, color temperature, brightness, saturation dimmable.
- Have DND mode, usually used in power failure area and save power.
- Compatible with “Tuya Smart” APP (need to purchase wifi box separately), more convenient for smart control.
Parameters #
| Product name | 40W RGB+CCT Dimming Driver (2.4GHz) |
| Model No. | PL05 |
| Input voltage | AC200-240V 50/60Hz |
| Output voltage | DC30-40V |
| Constant current output | CW, WW: 900mA R,G,B: 200mA |
| Output power | Max 40W |
| PF | >0.9 |
| Dimming range | 0-100% |
| RF | 2.4GHz |
| Control distance | 30m |
| Ta | 50°C |
| Tc | 85°C |

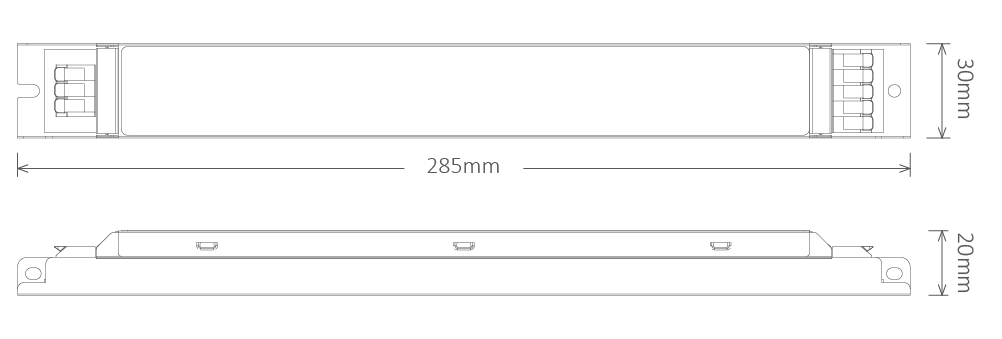

| Product size | 285*30*20 (L*W*H) |

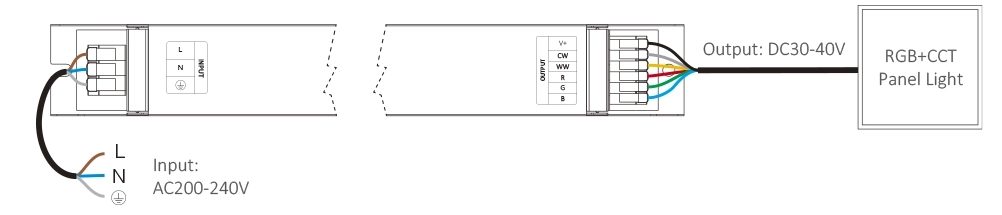

Connection Diagram #

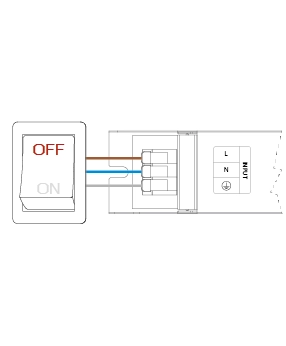

1. Please cut off power before wiring device.
2. Please check the voltage of power before connecting.
3. It's high voltage product which need to wire ground line.
Linking Code #
1. Power off

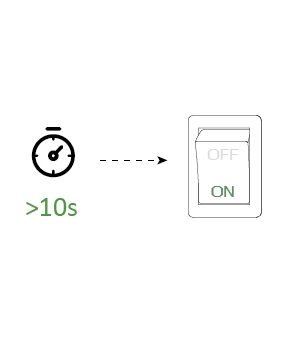

2. Turn on the light after 10 seconds

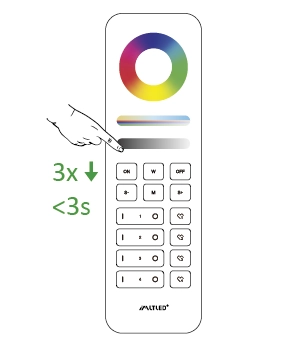

3. Short press “ I ” 3 times within 3 seconds
Linking code is done if the lights flashes 3 times slowly.
Don’t use “Master ON” to link code. You only can link lights into one zone on one remote.
Cleaning Code #
1. Power off
2. Turn on the light after 10 seconds

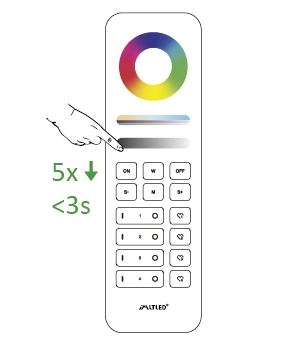

3. Short press “ I ” 5 times within 3 seconds
Cleaning code is done if the lights flashes 6 times quickly.
Dynamic Mode List #
Attention: brightness, saturation and speed are dimmable
| No. | Dynamic mode |
| 1 | Automatical color changing |
| 2 | RGB gradual changing |
| 3 | Color changing randomly |
| 4 | Seven color jumping |
| 5 | Color jumping randomly |
| 6 | Volcano red |
| 7 | Forest green |
| 8 | Ocean blue |
9 | Three color jumping and gradual changing |
Mini Brightness #
- Long press “
” or “
” in group zone 6 seconds until light flashes one time. - Short press “ ” or “ ” in group zone to set up 10 kinds of brightness level ( 1%, 5%, 10%, 15%, 20%, 25%, 30%, 35%, 40%, 50%).
” or “
” in group zone 6 seconds until light flashes one time.
Short press any button except “OFF” to confirm or step out setting, the master “OFF”can set up all features.
ON/OFF Time #
The light status changes gradually (factory default time is 0.5s).
1.5s: Short press “ON” 1 times and short press “OFF” 5 times within 3 seconds, the setting is done once light flashes 2 times slowly.
0.5s: Short press “OFF” 1 times and short press “ON” 5 times within 3 seconds, the setting is done once light flashes 2 times quickly.
Attention #
- 1. Don’t disassemble it if you are not expert.
- Don’t use it in metallic or magnetic area.
