TD01W Manual

PDF

APP download #

Scan QR code or click button to download “Tuya Smart” app

Tuya smart app
Click Download

Features #

  • This product is made by WiFi+BLE+2.4G wireless transmitting technology with low consumption and strong ability to resist signal loss.
  • Support 2.4G remote control.
  • Working with “Tuya Smart” app, wireless dimming, group control, timer function.
  • Support Alexa, Google Assistant, Yandex Alice.
  • 1-channel output, Max 1.5A.
  • Trailing edge phase-cut dimming.
  • Supports minimum brightness setting.
  • Built-in temperature detection switch.

Parameters #

Model No.:TD01W
Input / Output:AC100-240V   50/60Hz
Output Current:Max 1.5A
Output Power:150W@110V, 300W@220V
Control Signal:WiFi + 2.4G + PUSH
Control Distance:30m
IP Rate:IP20
Working Temp.:-20~45°C

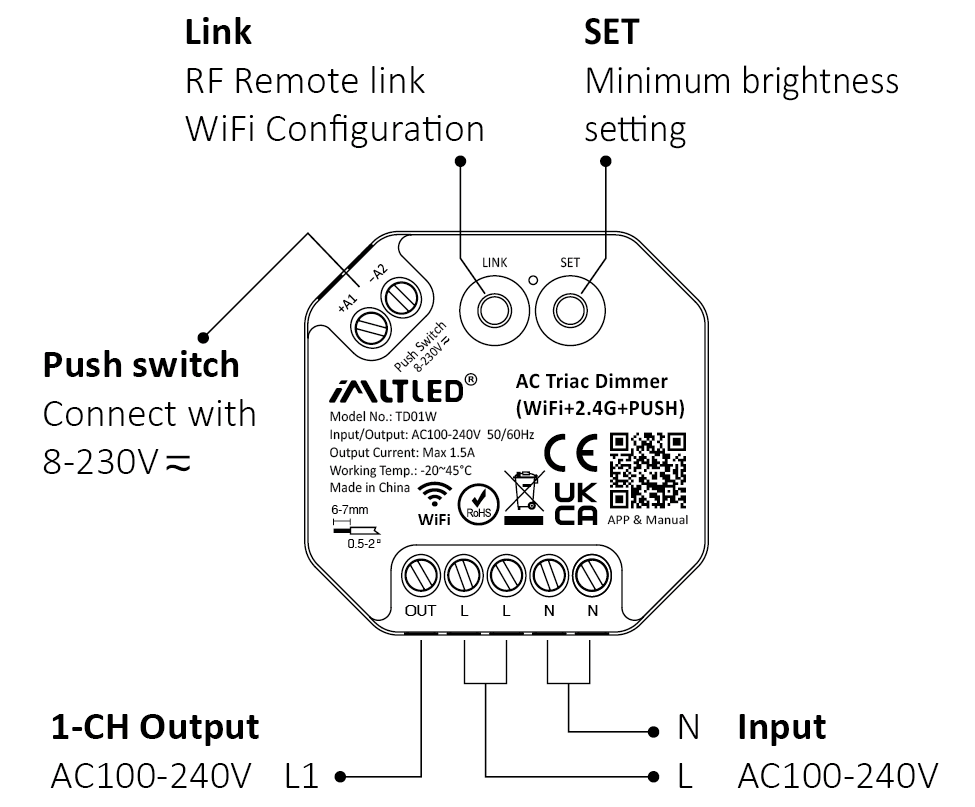

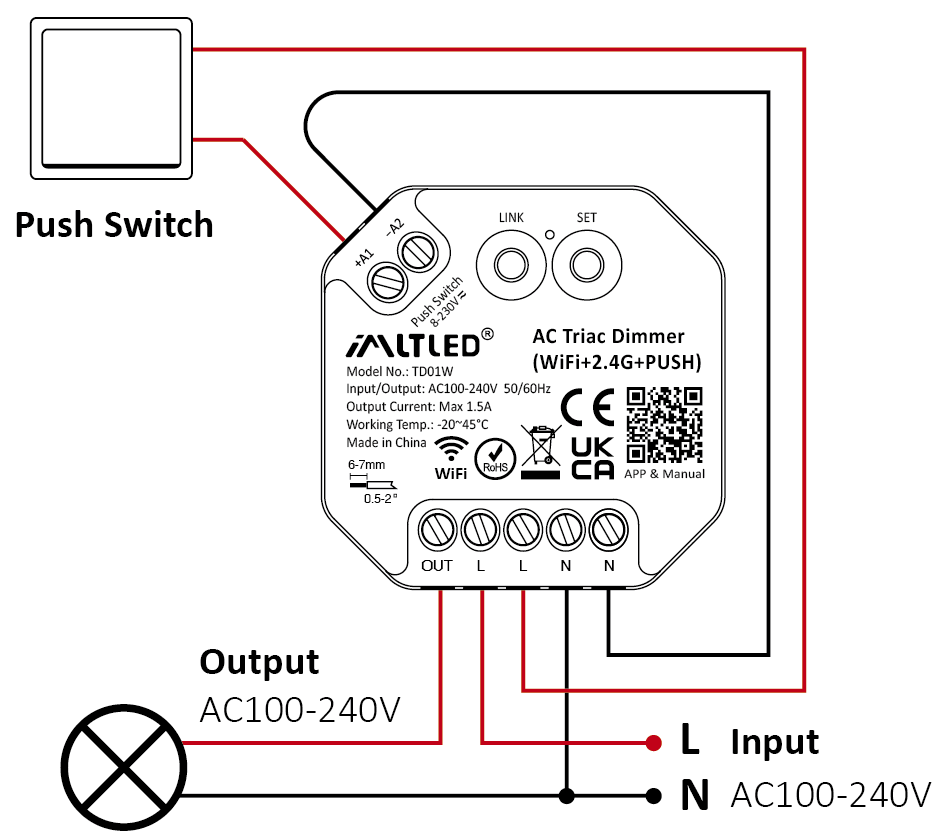

Connection Diagram #

Attention

1. Please cut off power before wiring device.
2. Please check the voltage of power before connecting.
3. It’s high voltage product which need to wire ground line.

PUSH Dimming #

Short press push switch : Turn on/off light

Long press push switch:

  • Stepless dimming brightness
  • Long press double times to increase or decrease brightness

Attention #

  1. One push switch can connect with various dimmer,please long press push switch 20 seconds to keep all lights in the same brightness.
  2. One push switch only connect with 25 dimmers (max)
  3. The cable of push switch can not be over 20m

APP Details #

Adding device #

1). Connect controller with power adapter

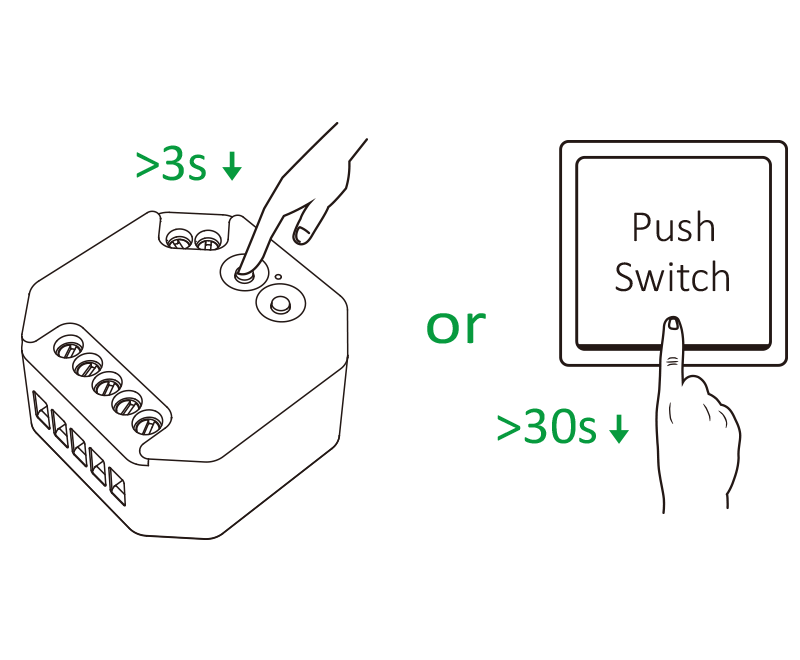

2). Long press “LINK” 3 seconds or long press “ Push Switch ” 30 seconds if indicator doesn't blink quickly

2.4G WiFi

3). Connect smart phone with 2.4Ghz WiFi

Click the "+" in the upper right corner

4). Click “+”

Select lighting

5). select “lighting” and “light source (BLE+wifi)”, finishing the rest steps in app

6). Click device to enter into main page

  1. Output mode: select correct mode to compatible with led strip.
  2. PWM frequency: changing different frequency to solve the noise problem from power adapter.
  3. Mini brightness: the lowest brightness of lights.
  4. ON/OFF time: the light status changes gradually( factory default time is 0.5s).

High frequency only support device with lower wattage, low frequency support device with higher wattage and have better dimming performance. (Factory default PWM frequency is 4KHz).

Controller parameter definition

Voice control Details #

Click “Me”, select the third-party service and completed setting.

Third-Party Services

2.4G Remote Control #

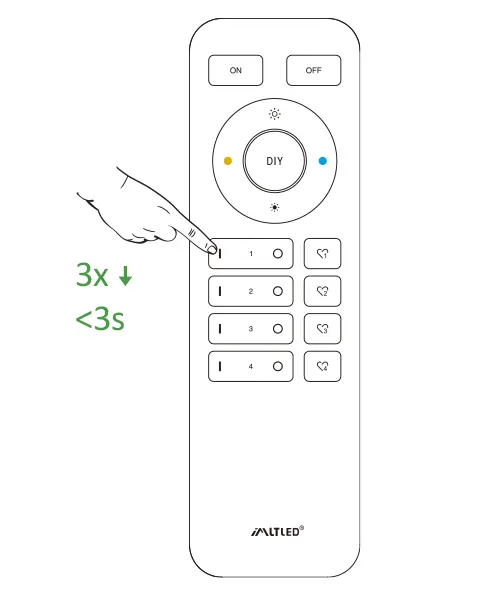

Linking code (2 different solution) #

Method 1

Short press “ LINK ” 1 time, short press “ I ” on the remote 3 times within 3 seconds.

Method 2

Press “ Push switch ” and turn on light, short press “ I ” on the remote 3 times within 3 seconds.

Short press “ I ” 3 times within 3 seconds. Linking code is done if the lights flashes 3 times slowly.

 Don’t use “Master ON” to link code. You only can link lights into one zone on one remote.

Cleaning Code (2 different solution) #

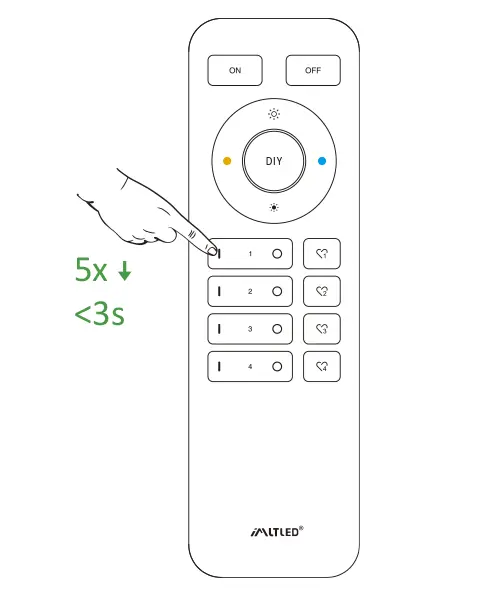

Method 1

Short press “ LINK ” 1 time, short press “ I ” on the remote 3 times within 3 seconds.

Method 2

Press “ Push switch ” and turn on light, short press “ I ” on the remote 3 times within 3 seconds.

Short press “ I ” 5 times within 3 seconds.

Cleaning code is done if the lights flashes 6 times quickly.

Mini Brightness #

Preventing the light is off or flashing while dimming it to lower brightness.

Method 1

Short press “set” continuously to set up 10 kinds of brightness ( 1%, 5%, 10%, 15%, 20%, 25%, 30%, 35%, 40%, 50%).

       Method 2

  1. Long press “ ” or “ ” in group zone 6 seconds until light flashes one time.
  2. Short press “ ” or “ ” in group zone to set up 10 kinds of brightness.

ON/OFF Time #

The light status changes gradually (factory default time is 0.5s).

1.5s: Short press “ON” 1 times and short press “OFF” 5 times within 3 seconds, the setting is done once light flashes 2 times slowly.

0.5s: Short press “OFF” 1 times and short press “ON” 5 times within 3 seconds, the setting is done once light flashes 2 times quickly.

ON/OFF Dimming mode #

Shut down dimming mode ( activate ON/OFF mode) #

Long press “SET” 10 seconds, dimming mode is shut down while indicator flashes 3 times slowly.

Activate dimming mode #

Long press “SET” 10 seconds, dimming mode is activated while indicator flashes 3 times quickly.

Attention #

  1. Please cut off power before wiring device.
  2. Please check the voltage of power before connecting.
  3. Don’t disassemble it if you are not expert.
  4. Don’t use it in metallic or magnetic area.
Scroll to Top
