PL01 Manual

Features #

This product is made by 2.4G wireless transmitting technology with low consumption and strong ability to resist signal loss.
Support 2.4G remote, 0-10V, 1-10V Dimming.
Have DND mode, usually used in power failure area and save power.
Compatible with “Tuya Smart” APP ( need to purchase wifi box separately), more convenient for smart control.

Parameters #

Product name	40W 0/1-10V Dimming Driver (2.4GHz)
Model No.	PL01
Input voltage	AC200-240V 50/60Hz
Output voltage	DC30-40V
Constant current output	>900mA
Output power	Max 40W
PF	>0.9
Dimming Range	0-100%
RF	2.4GHz
Ta	50°C
Tc	85°C
Product Size	2853020 (LWH)

Connection Diagram #

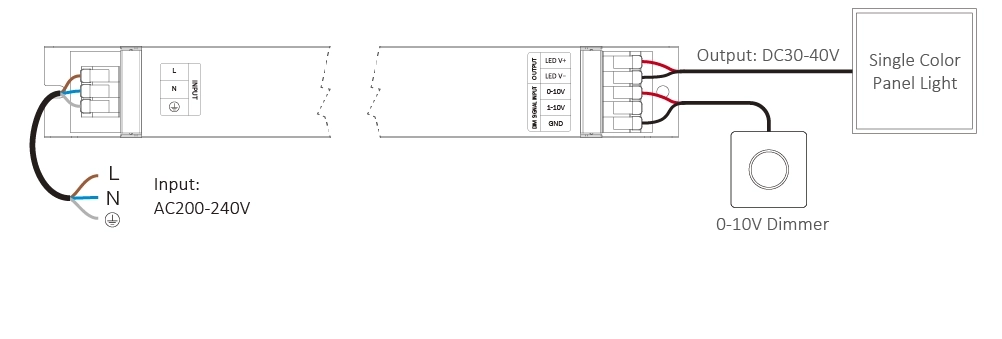

0-10V Details #

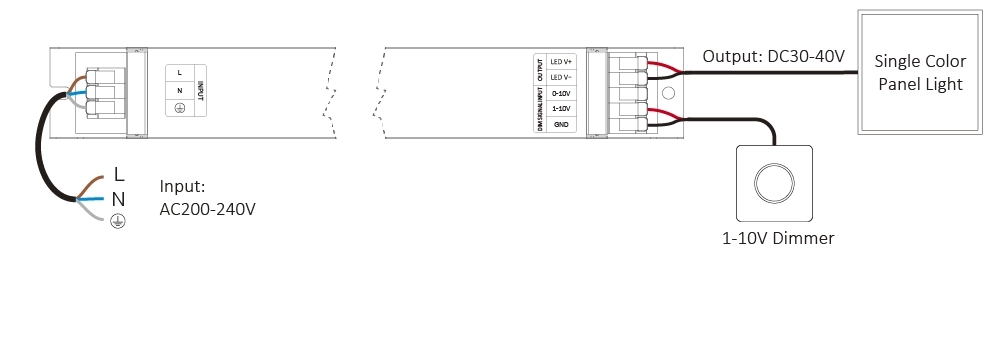

1-10V Details #

1. Please cut off power before wiring device.
2. Please check the voltage of power before connecting.
3. It's high voltage product which need to wire ground line.

Linking Code #

Linking code is done if the lights flashes 3 times slowly.

Don’t use “Master ON” to link code. You only can link lights into one zone on one remote.

Cleaning Code #

Cleaning code is done if the lights flashes 6 times quickly.

Mini Brightness #

Long press “ ” or “ ” in group zone 6 seconds until light flashes one time.
Short press “ ” or “ ” in group zone to set up 10 kinds of brightness level ( 1%, 5%, 10%, 15%, 20%, 25%, 30%, 35%, 40%, 50%).

Short press any button except “OFF” to confirm or step out setting, the master “OFF”can set up all features.

ON/OFF Time #

The light status changes gradually (factory default time is 0.5s).

1.5s: Short press “ON” 1 times and short press “OFF” 5 times within 3 seconds, the setting is done once light flashes 2 times slowly.

0.5s: Short press “OFF” 1 times and short press “ON” 5 times within 3 seconds, the setting is done once light flashes 2 times quickly.

Attention #

1. Don’t disassemble it if you are not expert.
Don’t use it in metallic or magnetic area.
