4-Channel SPI Output

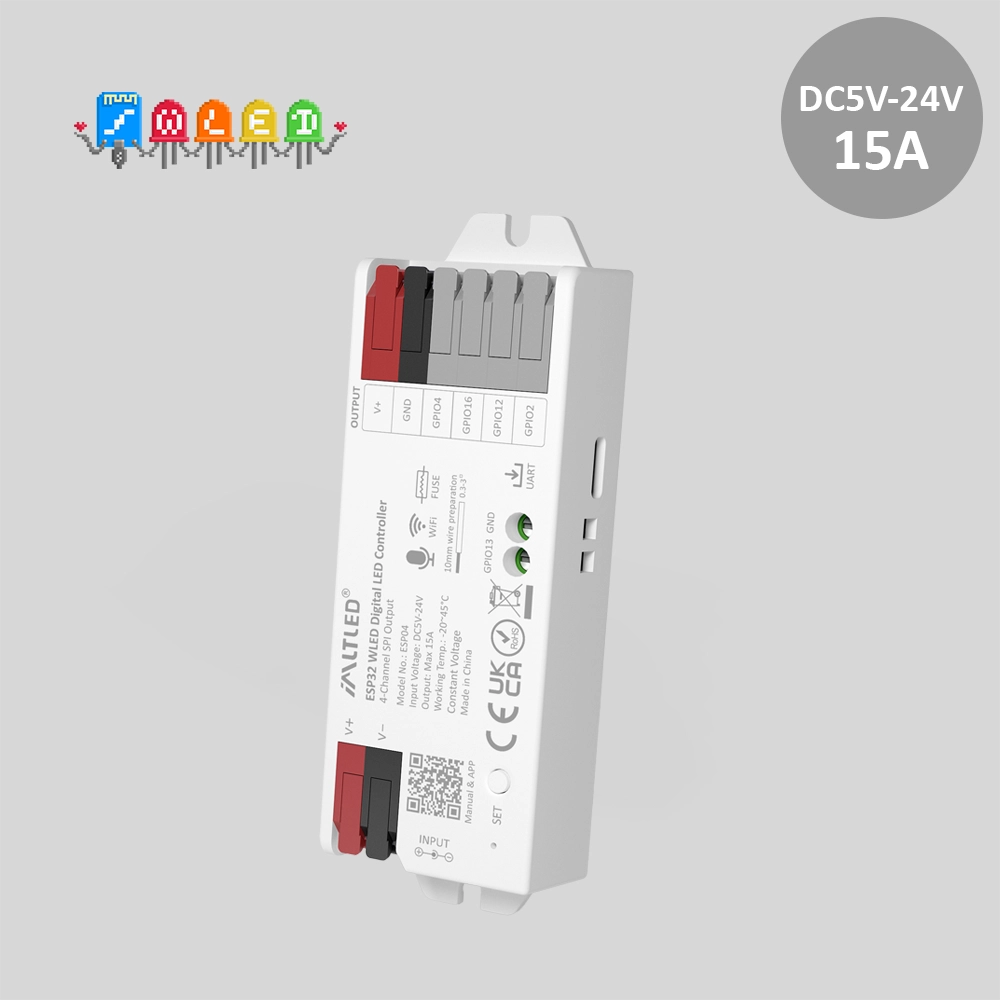

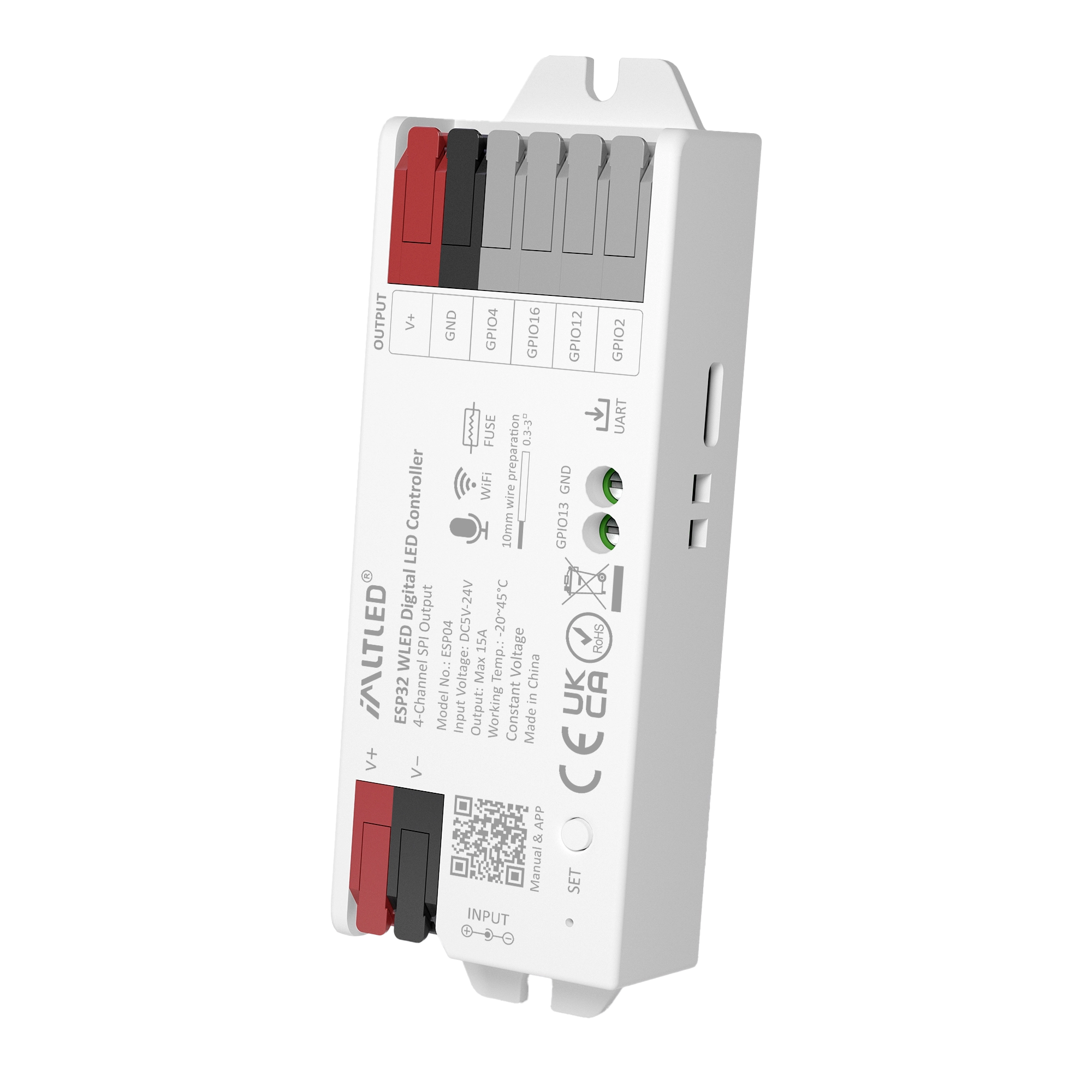

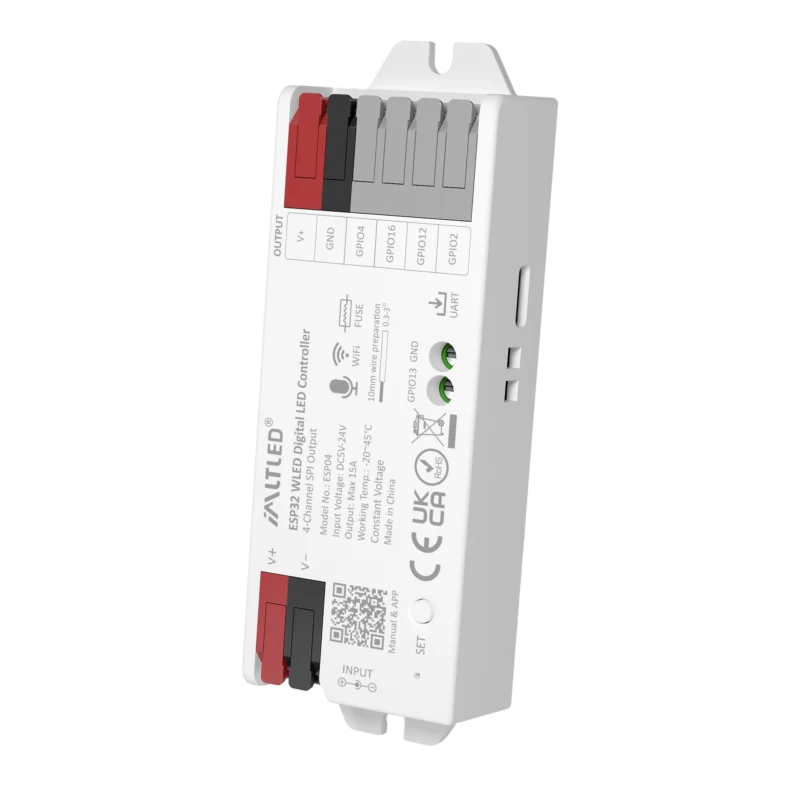

ESP32 WLED Digital LED Controller

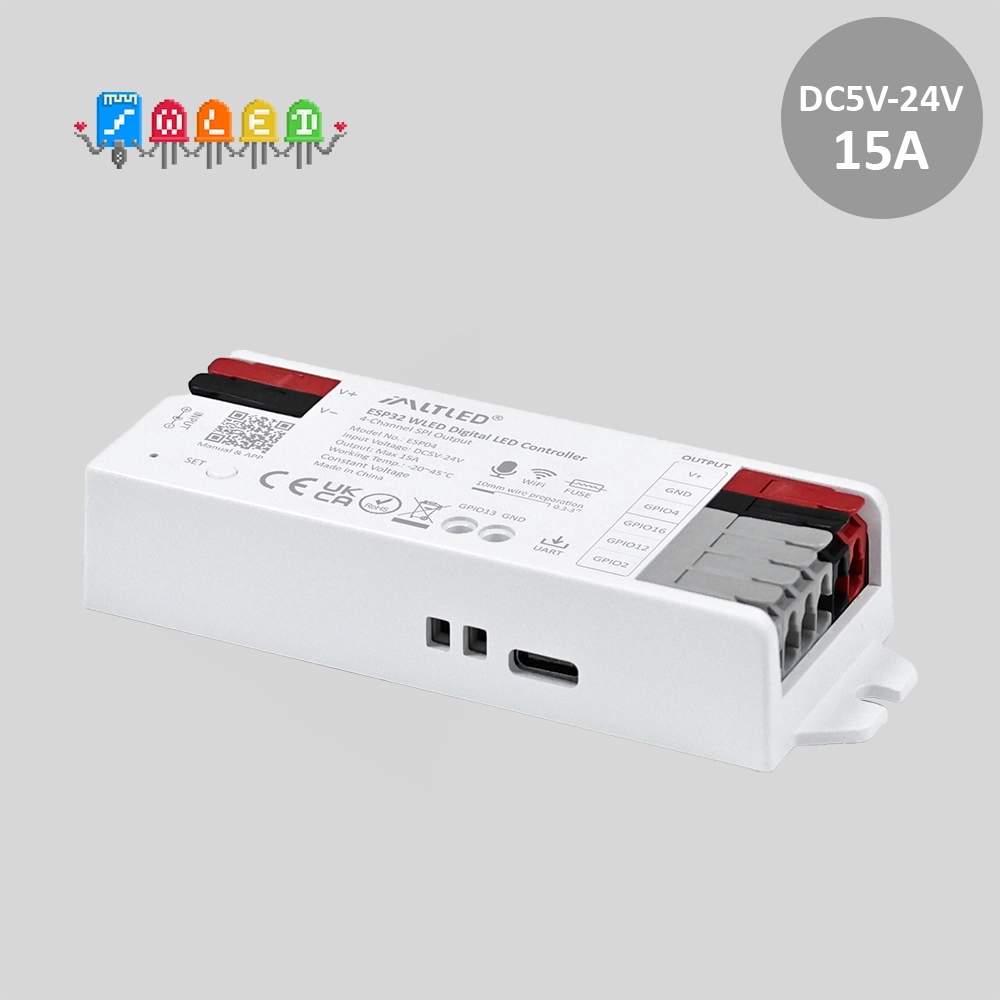

Type-c UART Download
Firmware updating simply via WLED APP(wireless solution) or UART terminal (wired solution)
Easy to operate
The built-in WLED program is pre-configured and ready to use out of the box.
WLED APP control
The WLED APP controls the lighting effects.
Built-in microphone
The lights automatically change color and brightness in sync with the music, creating an immersive lighting experience.
Segmented color control
Personalize every strip segment to show different colors
DIY lighting effect
Lighting effects vary freely,up to 160 kinds of dynamic mode
Scene display
Suitable for various lighting applications
WLED APP control
GPIO13 interface is for DIY use:It can be connected to push switches,sensors,and more
Overcurrent protection
Built-in 20A fuse to prevent circuit overload
Parameters
| Product Name: | ESP32 WLED Digital LED Controller |
| Model No.: | ESP04 |
| Output Channel: | 4 |
| Input Voltage: | DC5V-24V |
| Type-C Input Voltage: | DC5V |
| Output Current: | Max 15A |
| Pixel: | 1024/ Channel |
| Waterproof Rating: | WiFi |
| Waterproof Rating: | IP20 |
| Working Temperature: | -20~45°C |

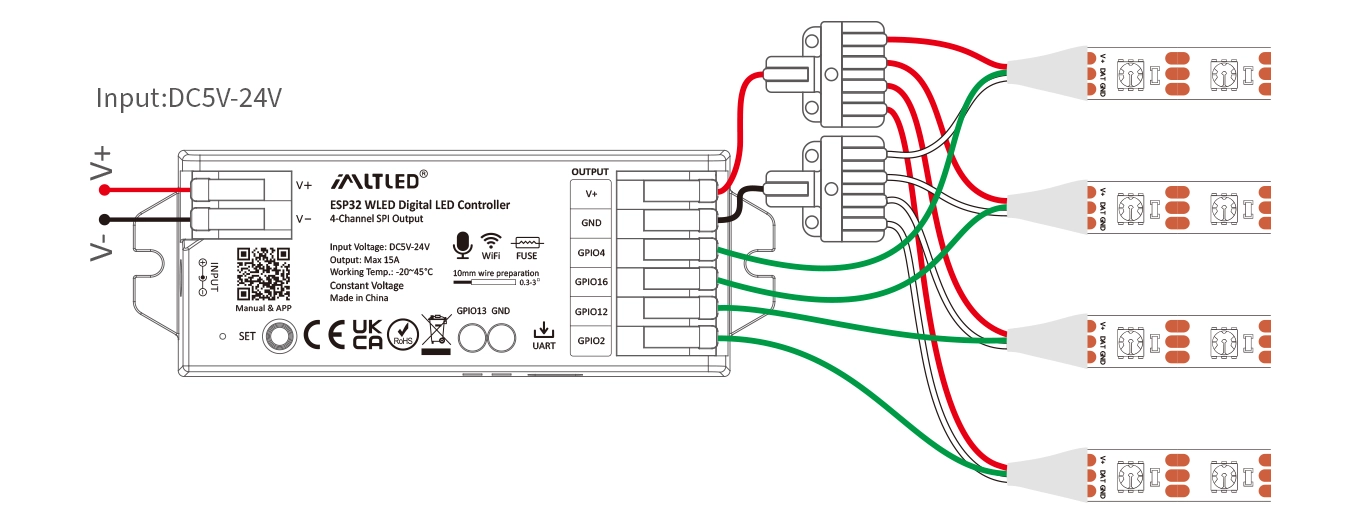

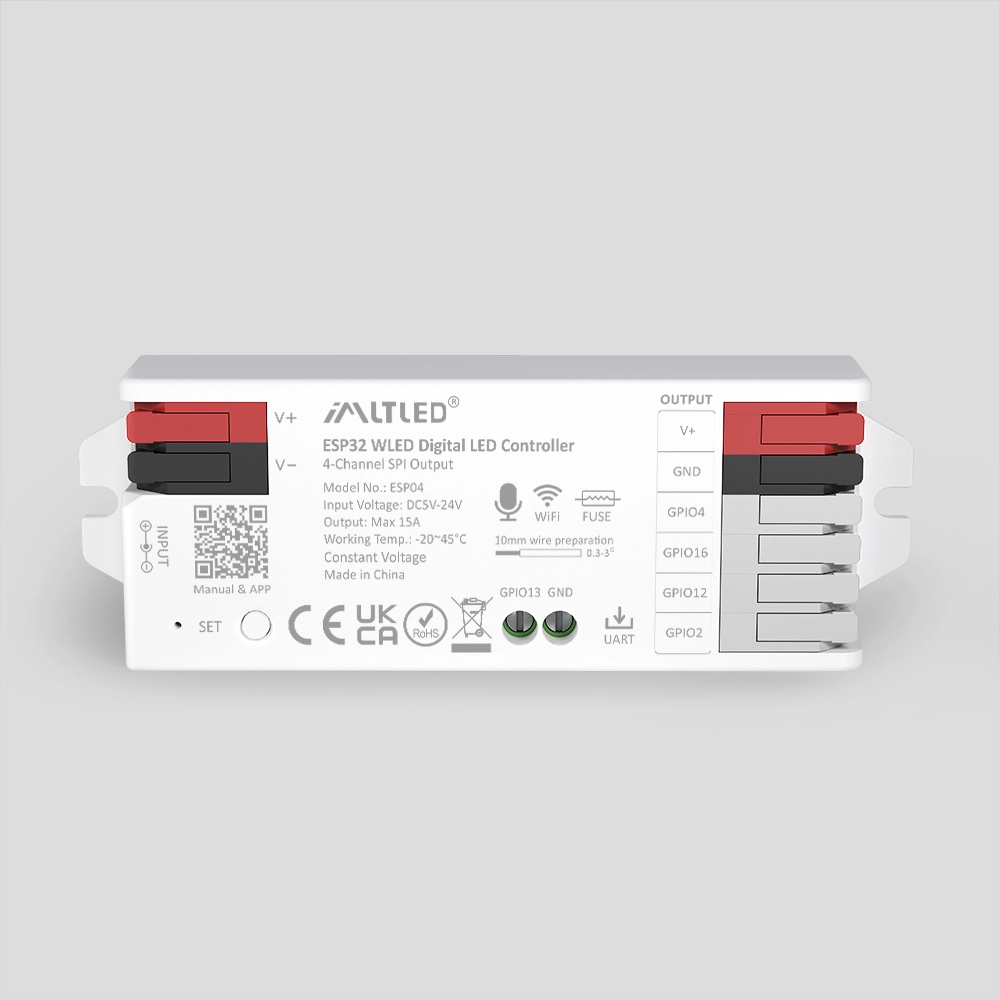

Connection Diagram
V+ → LED strip VCC
GND → LED strip GND
IO4 /IO16/IO12/IO2 → LED strip DATA
IO13 → Extended GPIO output (defined by user)
