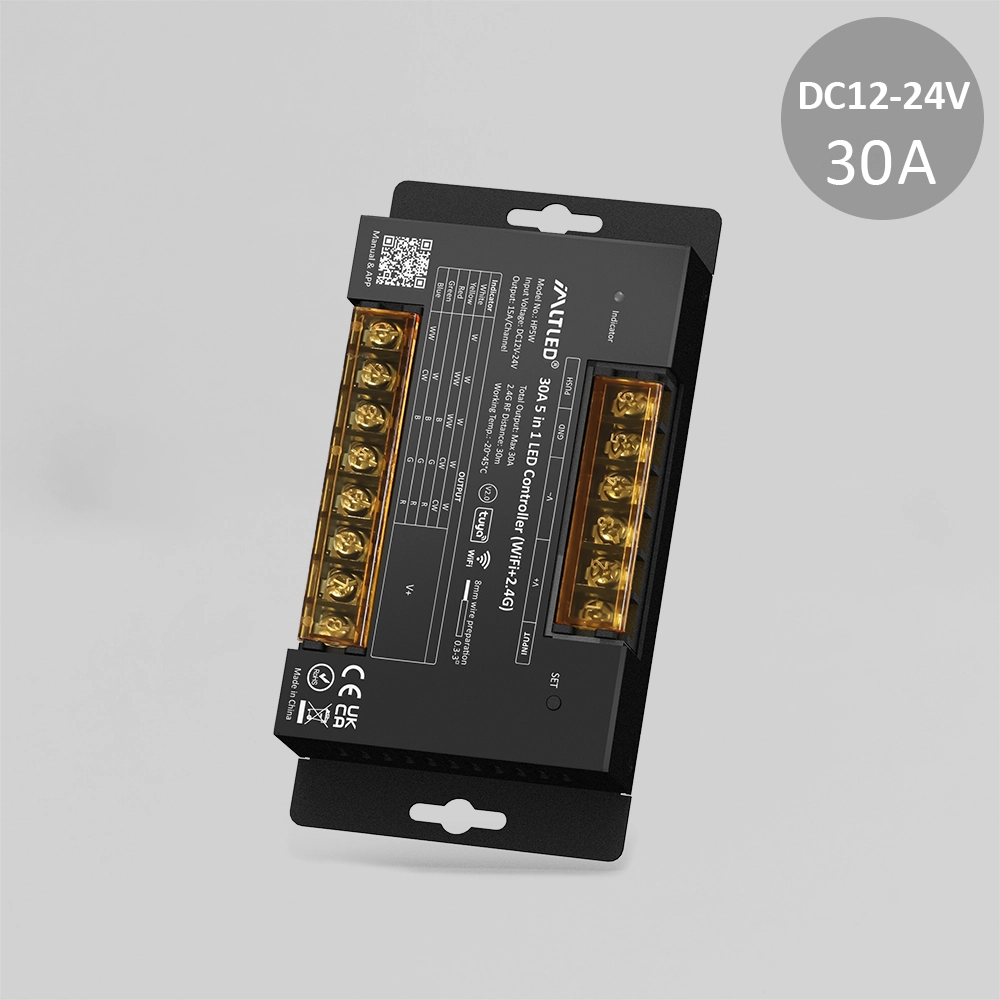

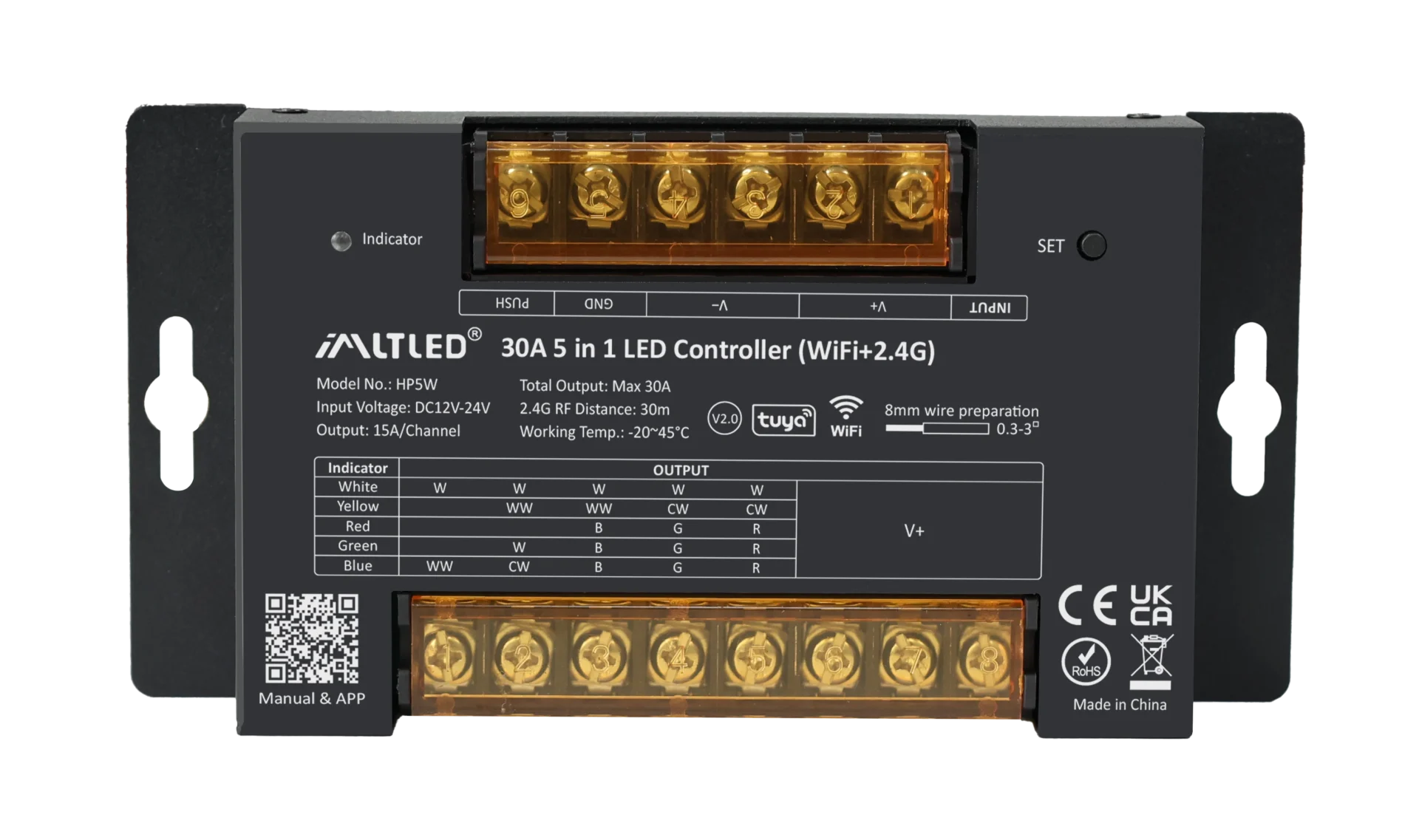

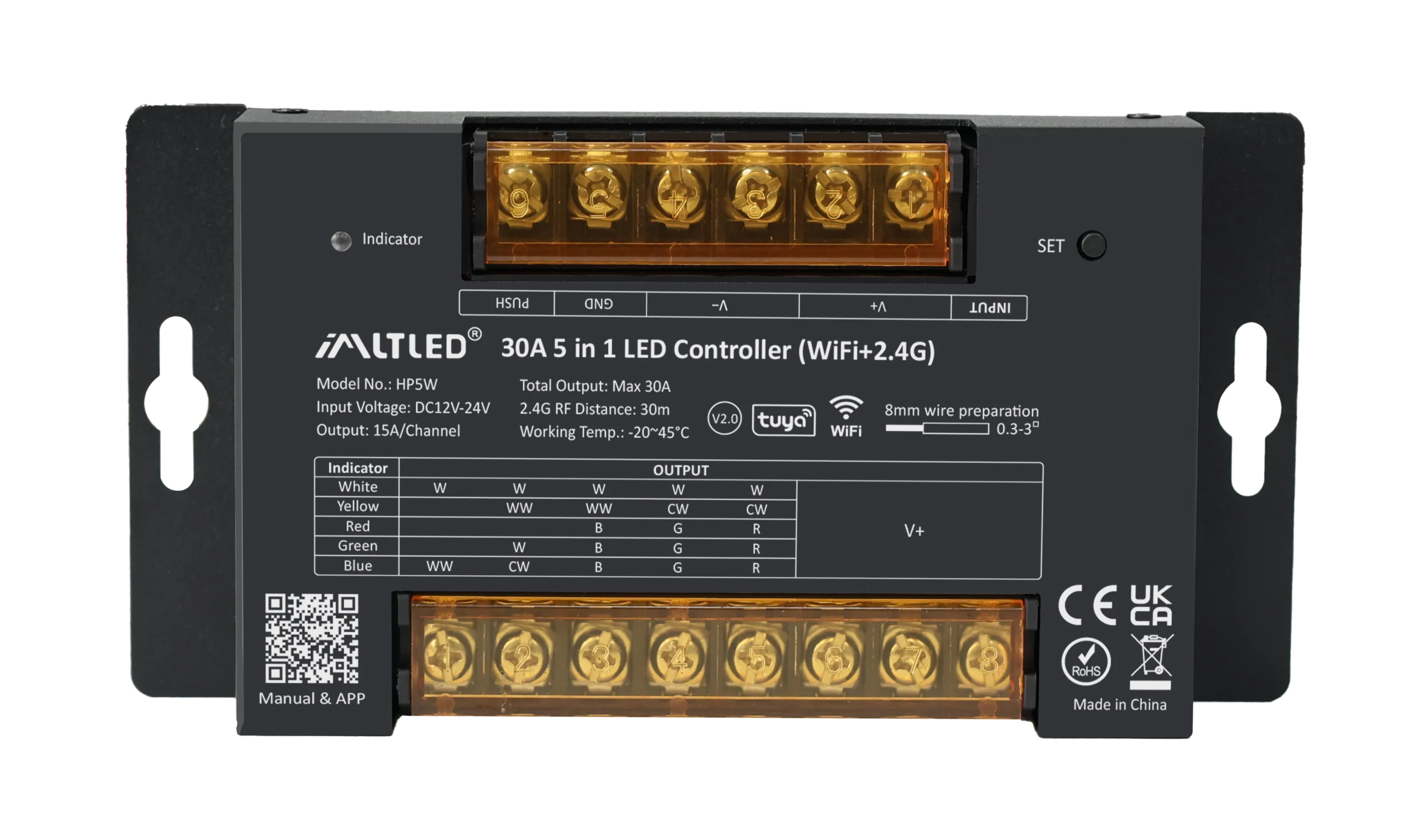

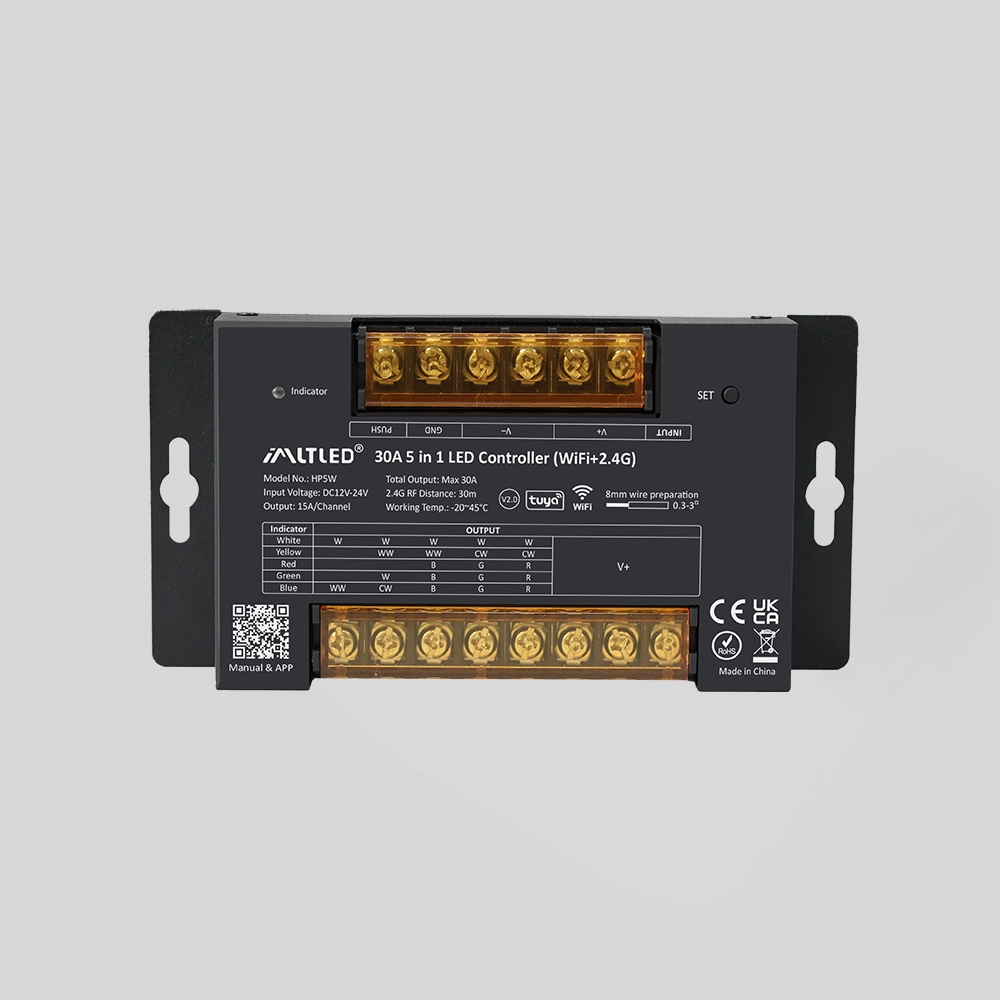

30A 5 in 1 Controller
5 Output Modes for 5 LED types: Single Color, CCT, RGB, RGBW, RGB+CCT
LED Controller
Functional Features
OTA cloud update supported
New features available via OTA cloud upgrade — keep your device up to date anytime.
4096-Level Dimming
Delivers ultra-fine, flicker-free adjustment for seamless and comfortable lighting transitions.
PWM Frequency Setting
Minimize power supply noise by tuning the PWM frequency. Supported frequencies: 250Hz / 500Hz / 1KHz / 2KHz / 3KHz / 4KHz / 5KHz / 6KHz / 7KHz / 8KHz
DND Mode
Intelligently remembers your light settings. In case of sudden power loss, your lights return to their previous state once power is restored, saving energy and giving you peace of mind.
Overheat Protection
Real-time temp monitoring with auto power adjustment for safe operation.
Remote Control
Functional Features
16 Million Colors
Full-Spectrum Color Control — precisely tailor your lighting atmosphere with adjustable RGB, saturation, brightness
4 DIY Scenes
Fully save your lights on/off status, color, brightness, and dynamic modes. Recall any preset scene with a single tap, like Movie Mode, Reading Mode, or Sleep Mode, for effortless ambiance control.
Minimum Brightness Setting
Supports 1%–50% minimum brightness setting
DIY Fade-in/Fade-out Time
Supports customizable fade-in/fade-out time from 0–3 seconds, creating a comfortable lighting experience.
9 Dynamic Modes (2.4 GHz RF Remote Only)
Built-in 9 dynamic lighting effects to create a rich light atmosphere.
2.4 GHz RF Remote Control
Stable 30 m signal with no delay — works through walls.
Automatic Signal Forwarding (2.4 GHz RF Remote Only)
The controller can automatically forward received remote signals to other controllers within a 30 m range, enabling signal relay. The remote control range can be continuously extended.
Automatic Synchronization (2.4 GHz RF Remote Only)
Within a range of 30 meters, all lights controlled by the same remote control can remain perfectly synchronized.
PUSH dimming
Support “PUSH” switch dimming, one-button on/off, double-click to switch brightness/color temperature mode (brightness/RGB mode)，long press to adjust brightness,color temperature,RGB
APP Control
Functional Features
APP Control
Compatible with Tuya Smart and Smart Life app. Supports circadian rhythm, cloud scheduling, sleep & wake-up lighting, vacation mode, smart scenes, and more for intelligent, personalized control.
8 DIY Dynamic Modes (App Control Only)
Take complete control of your lighting. Customize color, brightness, CCT, speed, and transition style—fade or jump—to create your perfect DIY light scenes.
Third-Party Voice Control
Supports Popular Third-Party Voice Control — Compatible with Amazon Alexa, Google Assistant, Yandex Alice, and more for effortless hands-free operation.
Music Rhythm
Lights automatically change color and brightness with the rhythm of the music, creating an immersive lighting experience perfect for parties or relaxation.
WiFi + Bluetooth Control
Easily access your network with WiFi and Bluetooth. Even if the router is offline, control your lights seamlessly via Bluetooth.
Parameters
| Product Name: | 30A 5 in 1 LED Controller (WiFi+2.4G) |
| Model No.: | HP5W |
| Input Voltage: | DC12-24V |
| Output: | 15A/Channel |
| Total Output: | Max 30A |
| Communication Protocol: | WiFi+2.4GHz |
| 2.4G RF Control Distance: | 30m |
| WiFi Standard: | IEEE 802.11b/g/n 2.4GHz |
| Bluetooth Protocol: | Bluetooth 5.2 |
| Working Temperature: | -20~45°C |

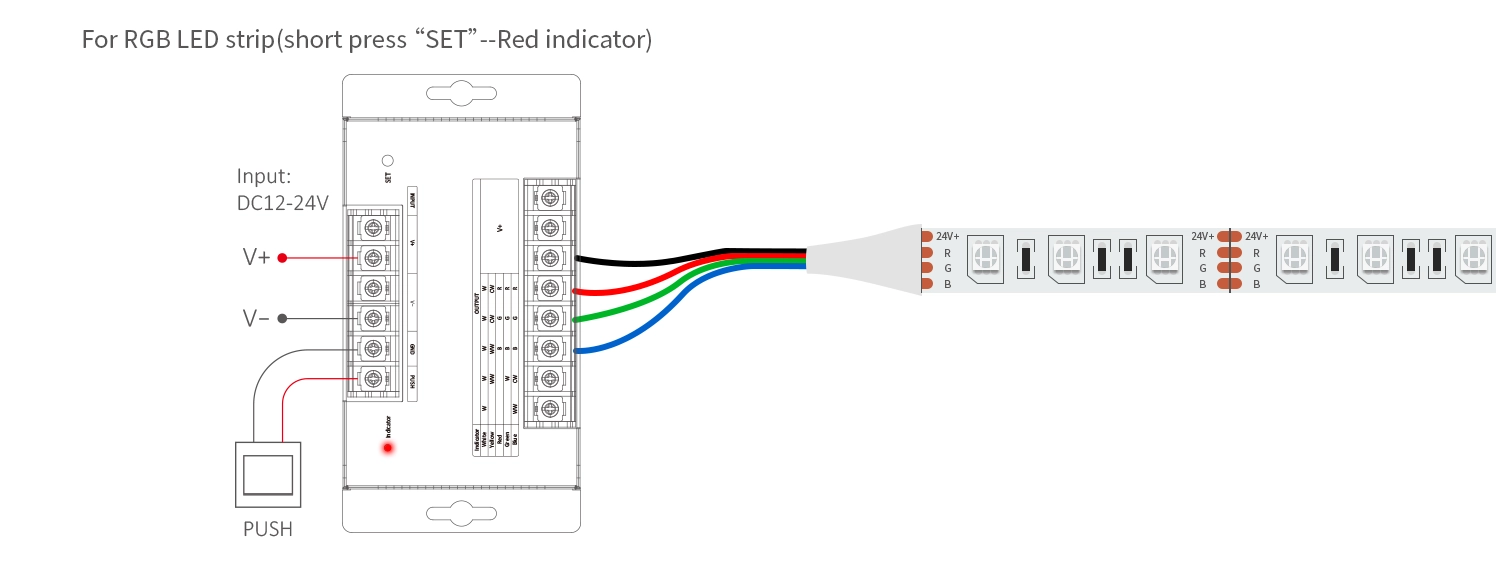

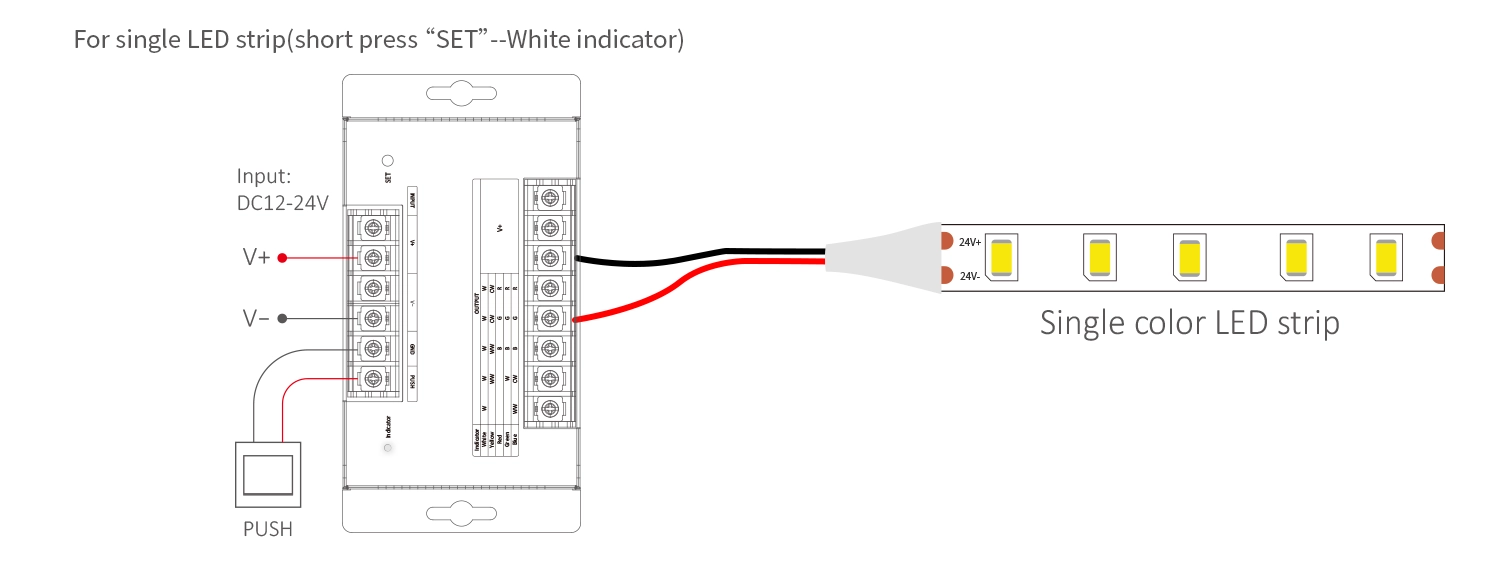

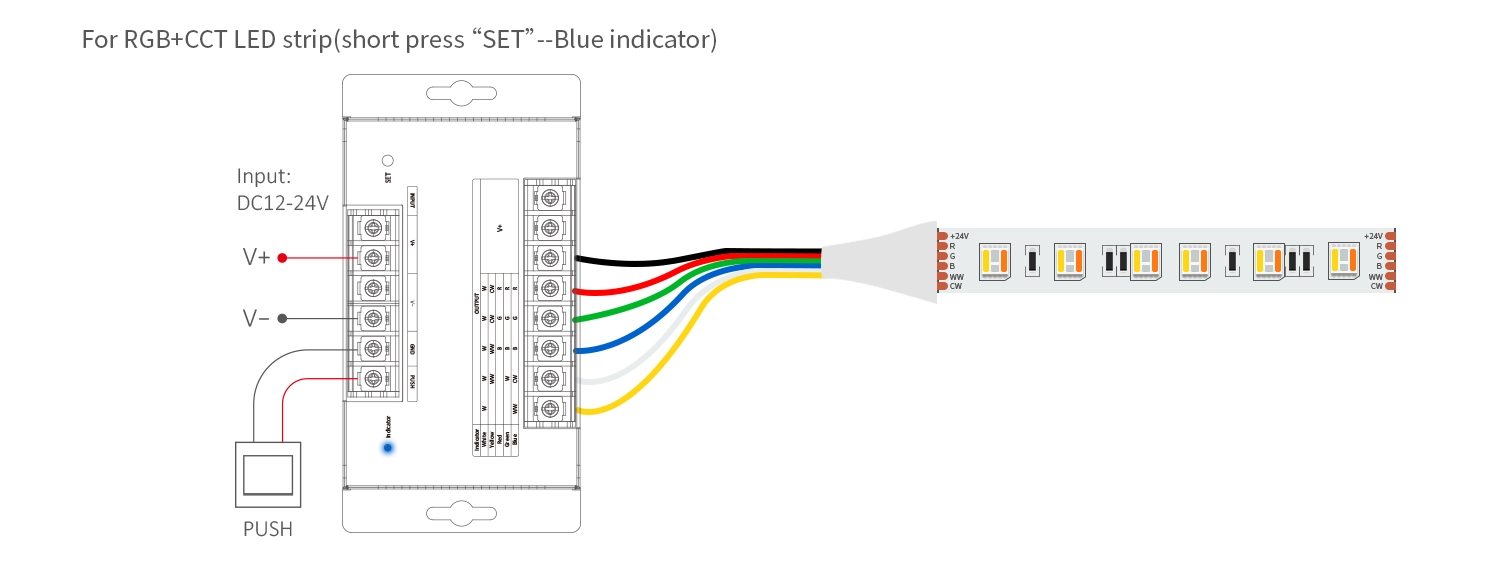

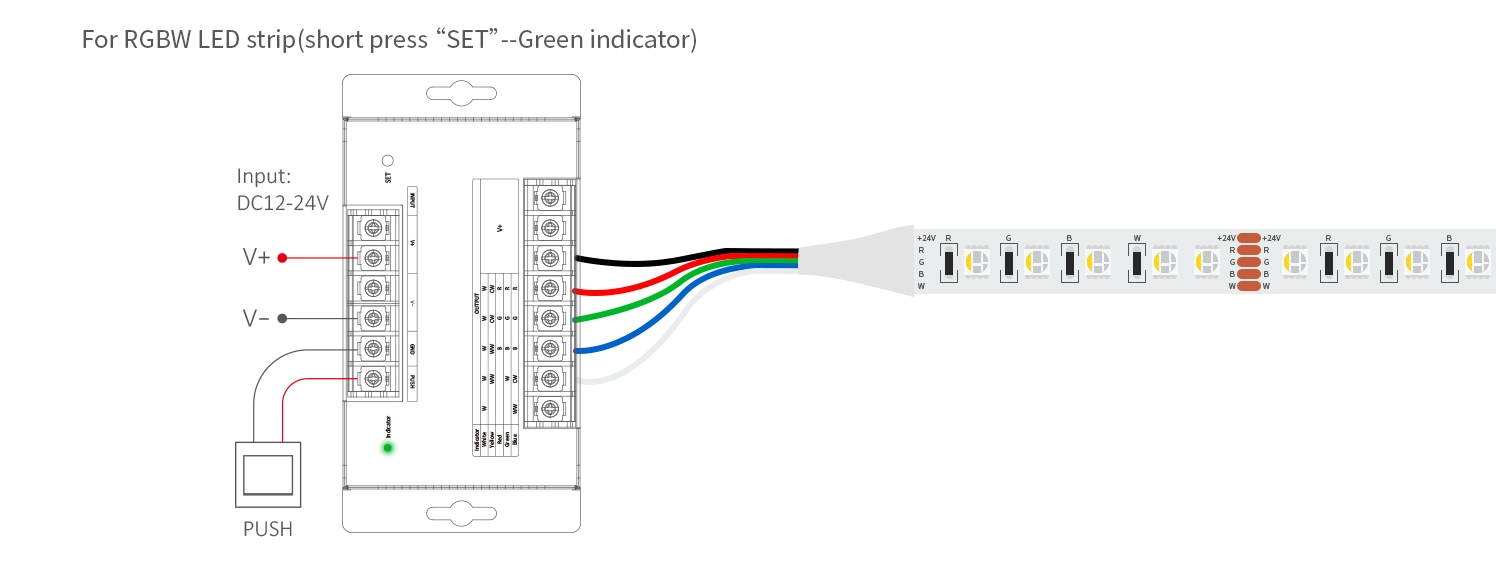

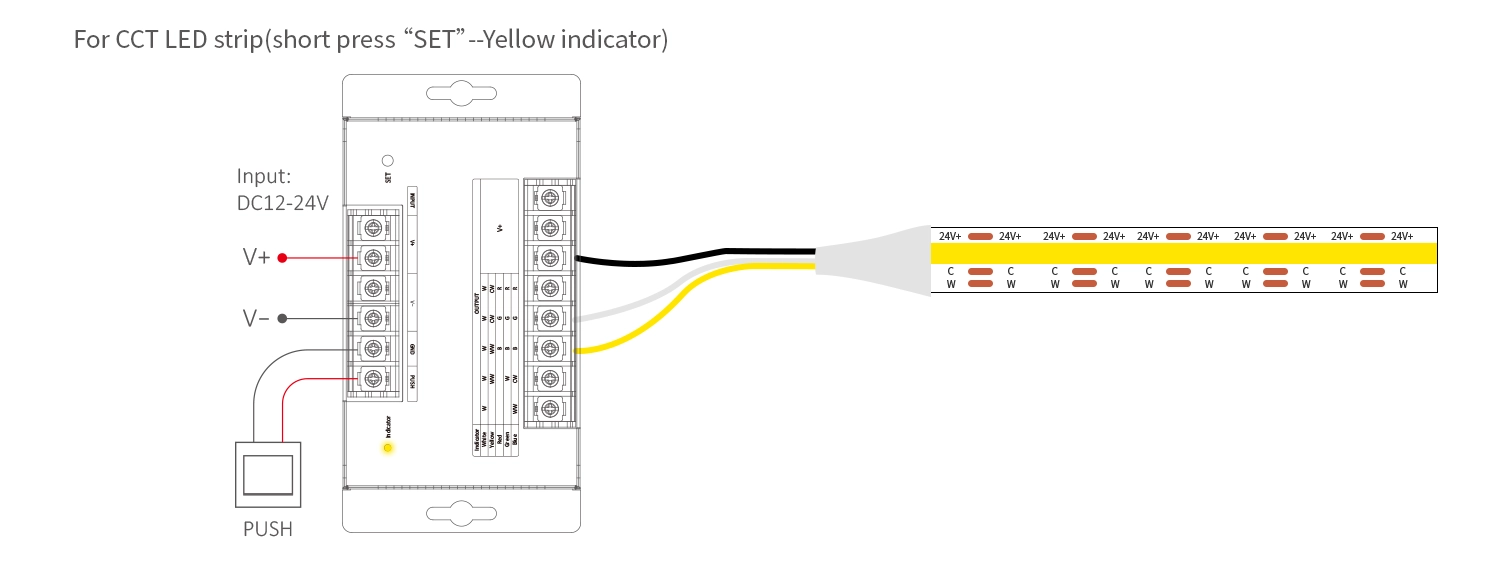

Connection Diagram
