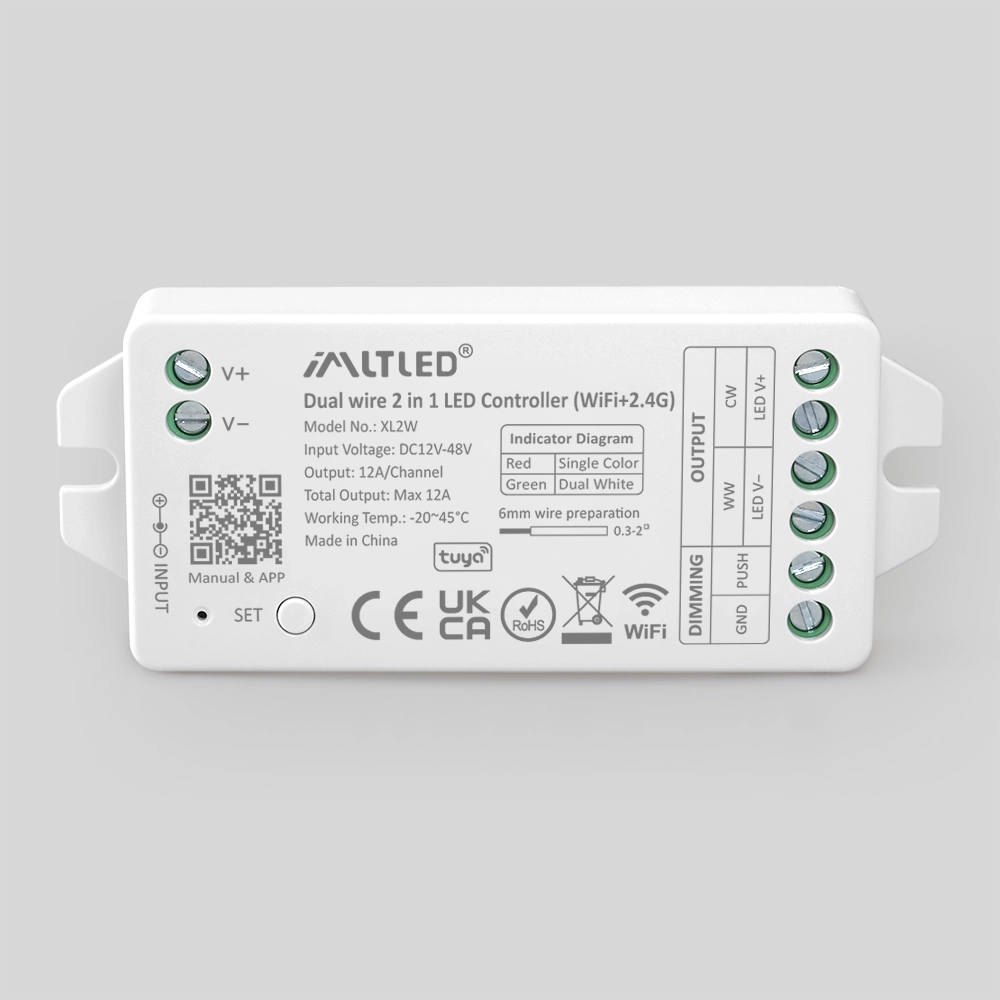

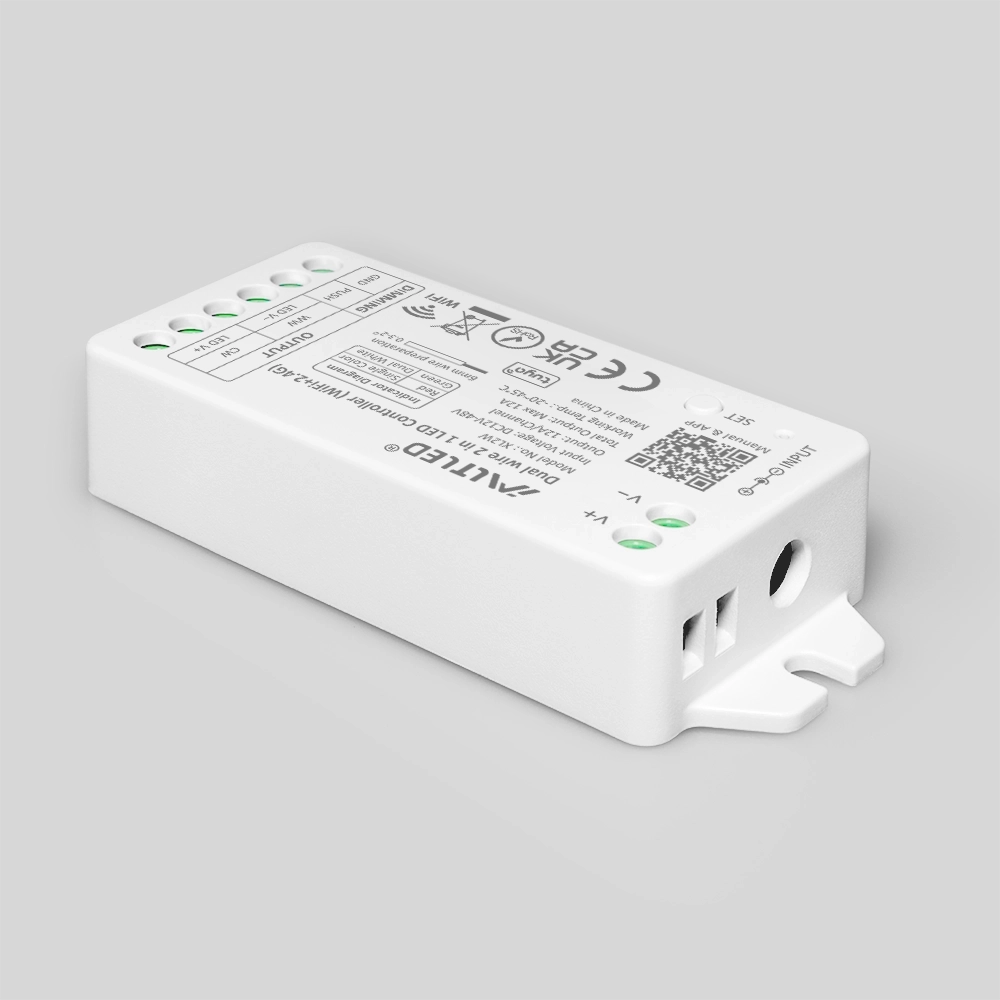

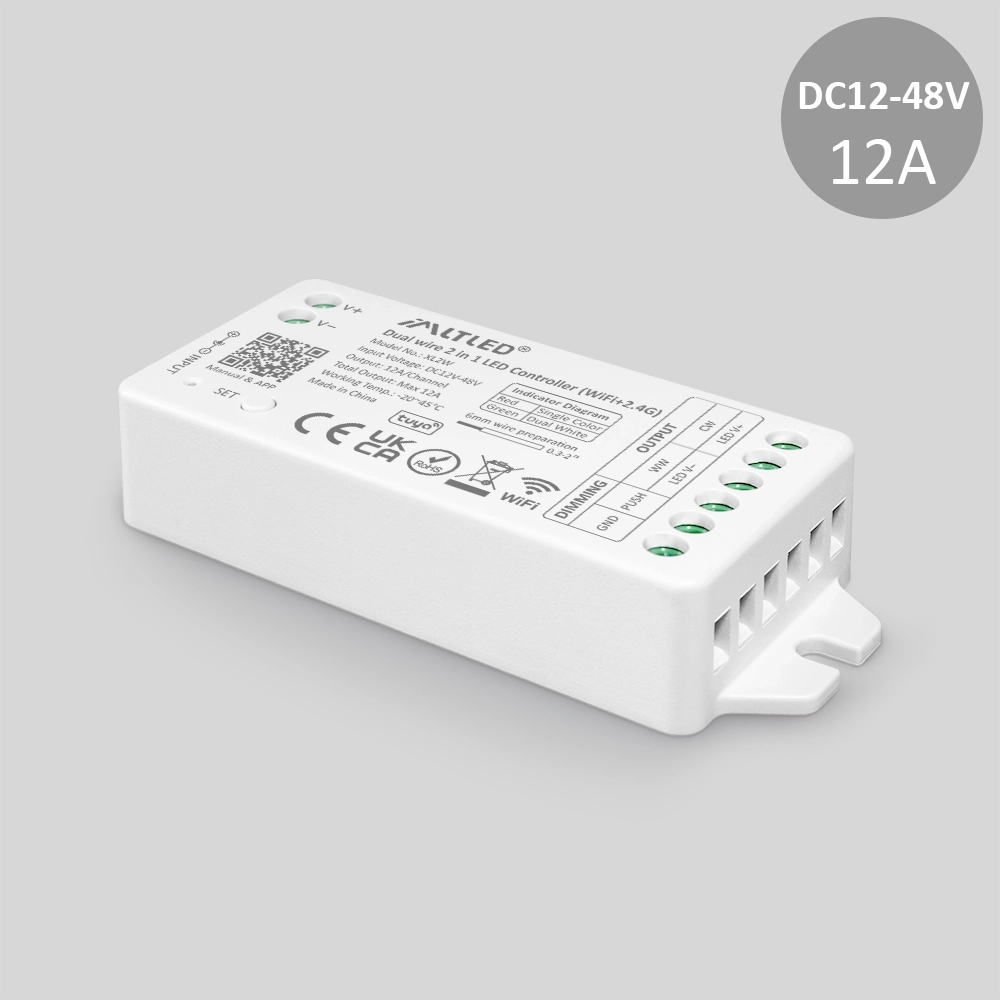

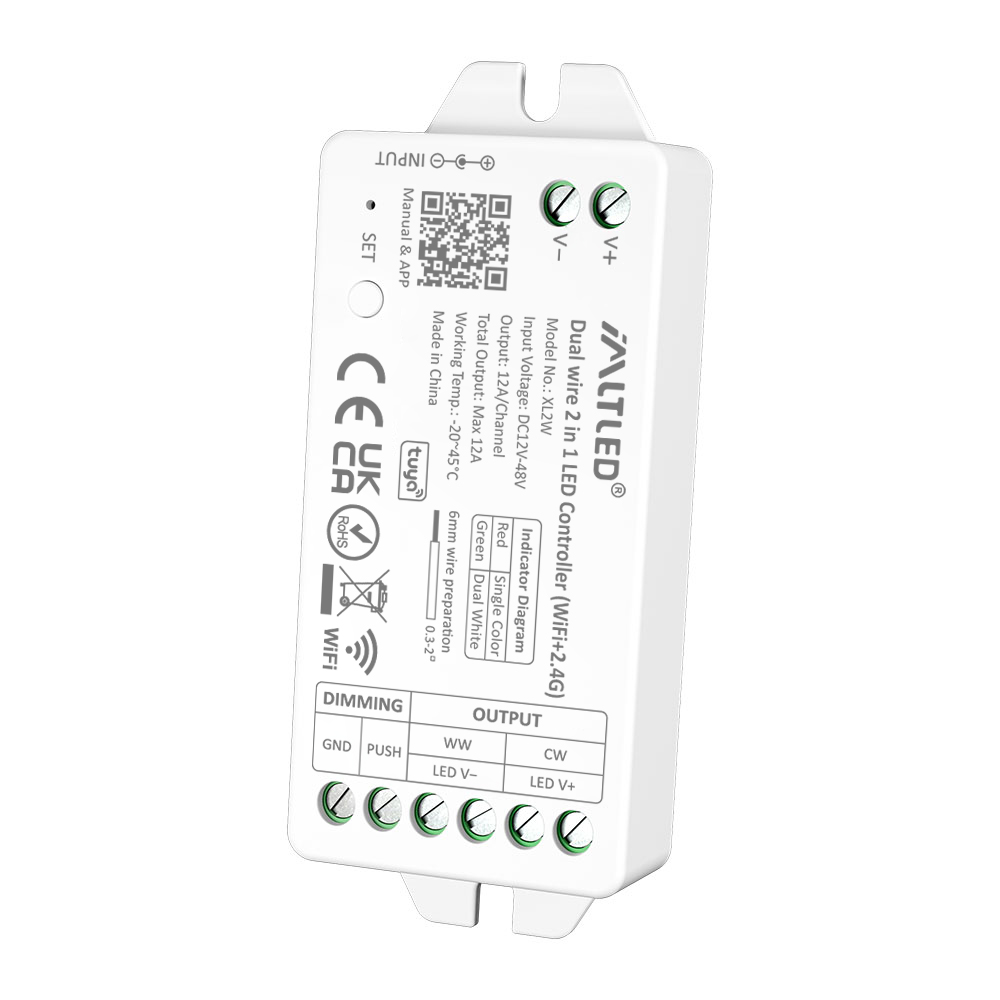

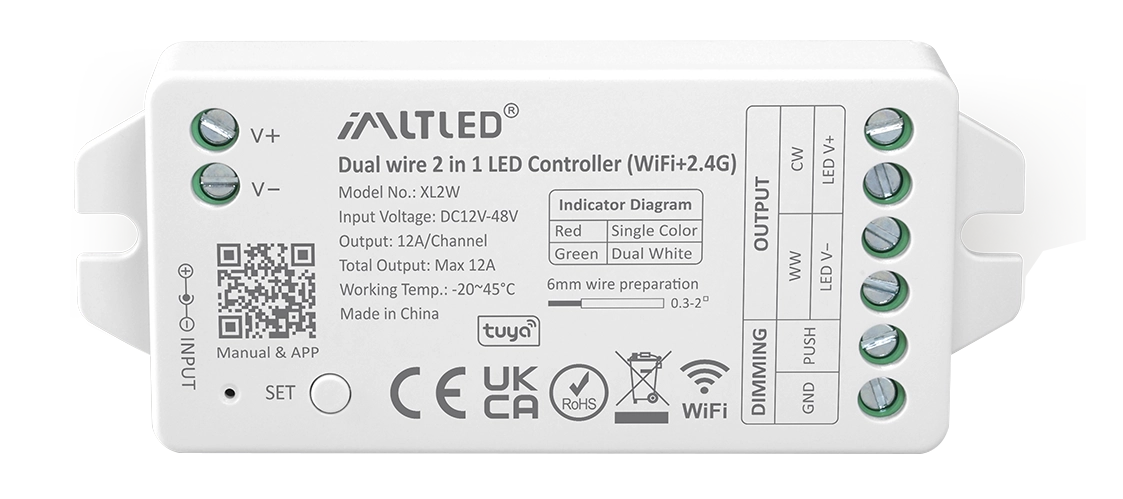

Dual Wire 2 in 1 LED Controller
2 kinds of output mode support 2 LED strip (Single color/Dual wires tunable white).
LED Controller
Functional Features
4096-Level Dimming
Delivers ultra-fine, flicker-free adjustment for seamless and comfortable lighting transitions.
PWM Frequency Setting
Minimize power supply noise by tuning the PWM frequency. Supported frequencies: 250Hz / 500Hz / 1KHz / 2KHz / 3KHz / 4KHz / 5KHz / 6KHz / 7KHz / 8KHz
DND Mode
Intelligently remembers your light settings. In case of sudden power loss, your lights return to their previous state once power is restored, saving energy and giving you peace of mind.
Overheat Protection
Real-time temp monitoring with auto power adjustment for safe operation.
Remote Control
Functional Features
4 DIY Scenes
Fully save your lights on/off status, color, brightness, and dynamic modes. Recall any preset scene with a single tap, like Movie Mode, Reading Mode, or Sleep Mode, for effortless ambiance control.
Minimum Brightness Setting
Supports 1%–50% minimum brightness setting
DIY Fade-in/Fade-out Time
Supports customizable fade-in/fade-out time from 0–3 seconds, creating a comfortable lighting experience.
2.4 GHz RF Remote Control
Stable 30 m signal with no delay — works through walls.
Automatic Signal Forwarding (2.4 GHz RF Remote Only)
The controller can automatically forward received remote signals to other controllers within a 30 m range, enabling signal relay. The remote control range can be continuously extended.
PUSH dimming
Support “PUSH” switch dimming, one-button on/off, long press to adjust brightness
APP Control
Functional Features

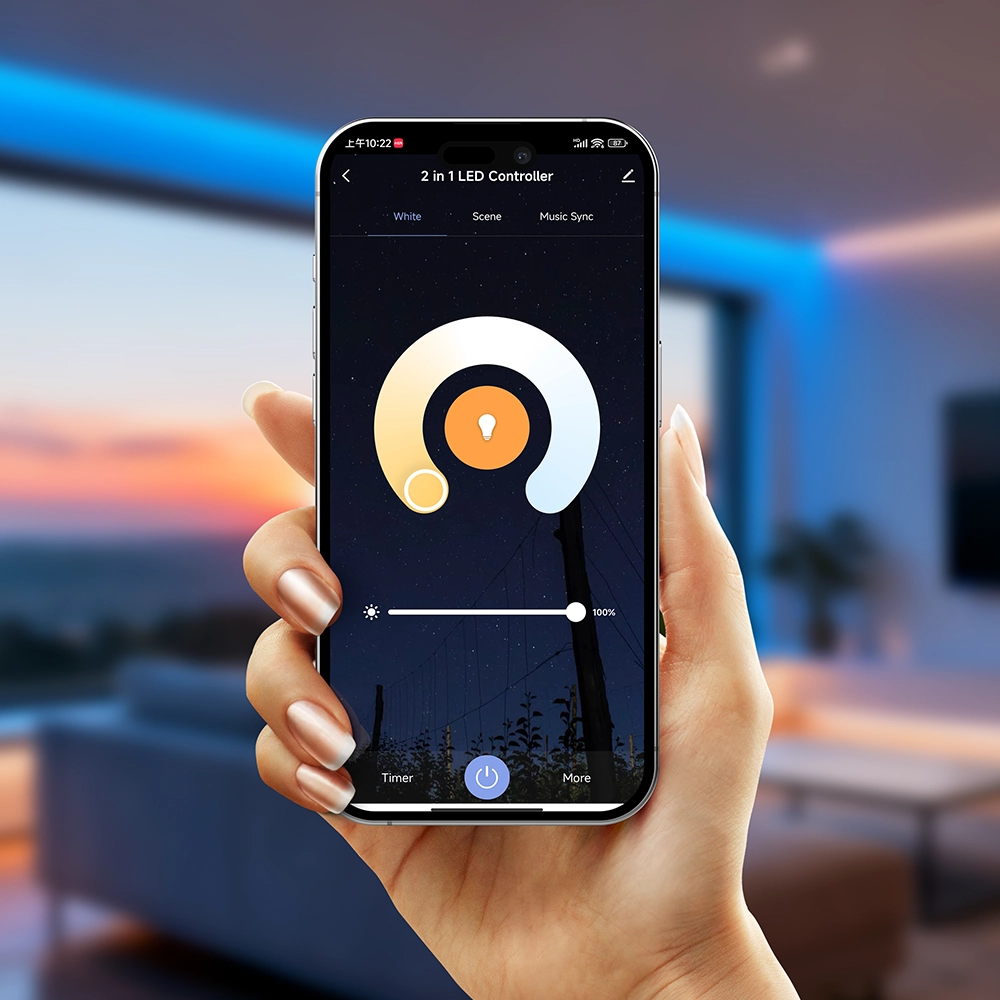

APP Control
Compatible with Tuya Smart and Smart Life app. Supports circadian rhythm, cloud scheduling, sleep & wake-up lighting, vacation mode, smart scenes, and more for intelligent, personalized control.

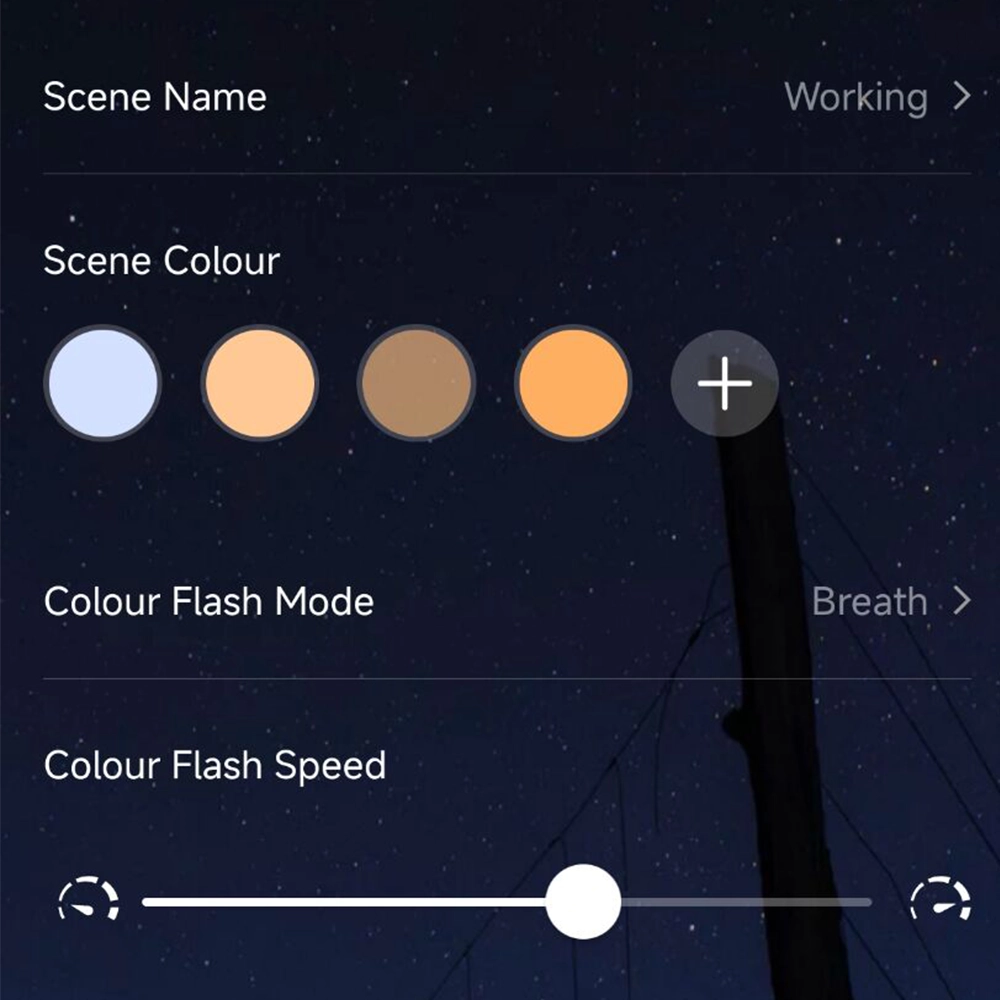

8 DIY Dynamic Modes (App Control Only)
Take complete control of your lighting. Customize CCT,brightness, speed, and transition style—fade or jump—to create your perfect DIY light scenes.
Third-Party Voice Control
Supports Popular Third-Party Voice Control — Compatible with Amazon Alexa, Google Assistant, Yandex Alice, and more for effortless hands-free operation.
Musical Rhythm
Lights automatically change color and brightness with the rhythm of the music, creating an immersive lighting experience perfect for parties or relaxation.
WiFi + Bluetooth Control
Easily access your network with WiFi and Bluetooth. Even if the router is offline, control your lights seamlessly via Bluetooth.
Parameters
| Product Name: | Dual Wire 2 in 1 LED Controller (WiFi+2.4G) |
| Model No.: | XL2W |
| Input Voltage: | DC12-48V |
| Output: | 12A/Channel |
| Total Output: | Max 12A |
| Communication Protocol: | WiFi+2.4GHz |
| 2.4G RF Control Distance: | 30m |
| WiFi Standard： | IEEE 802.11b/g/n 2.4GHz |
| Bluetooth Protocol： | Bluetooth 5.2 |
| Waterproof Rating： | IP20 |
| Working Temperature: | -20~45°C |
Connection Diagram

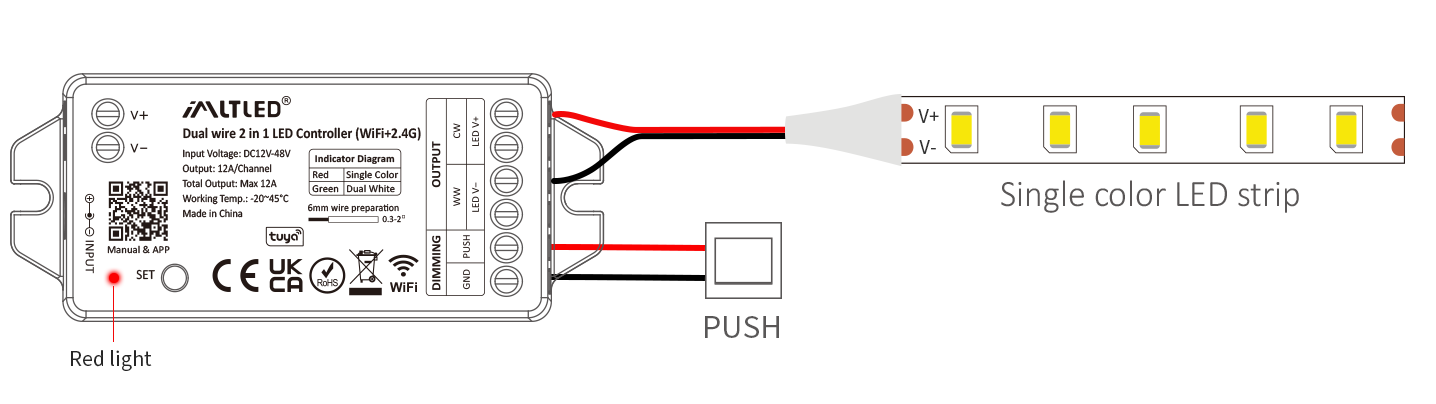

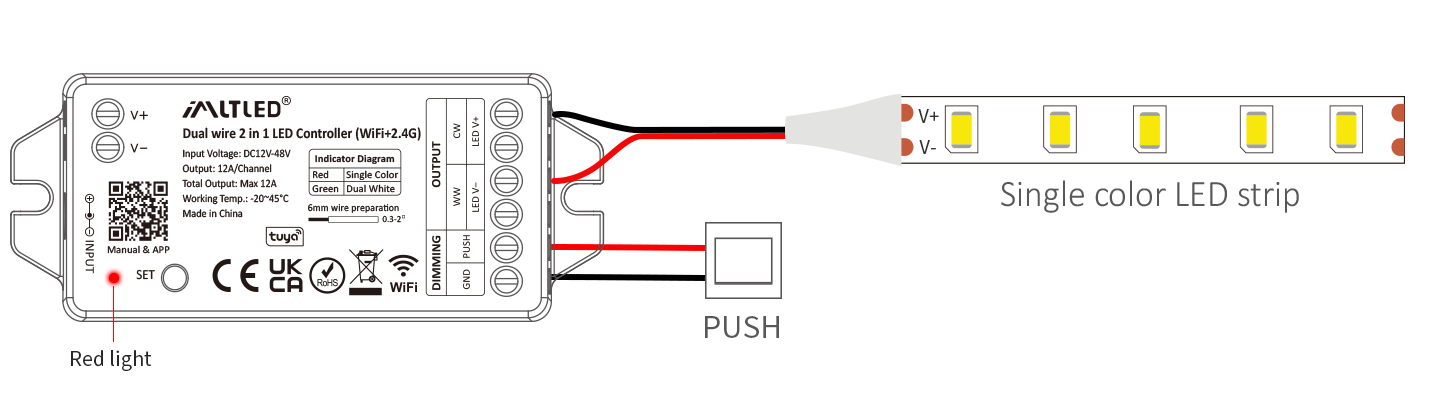

For single color LED strip(short press “SET”–Red indicator)
Input: DC12V-48V
For Dual wire tunable white LED strip(short press “SET”–Green indicator)
Input: DC12V-48V

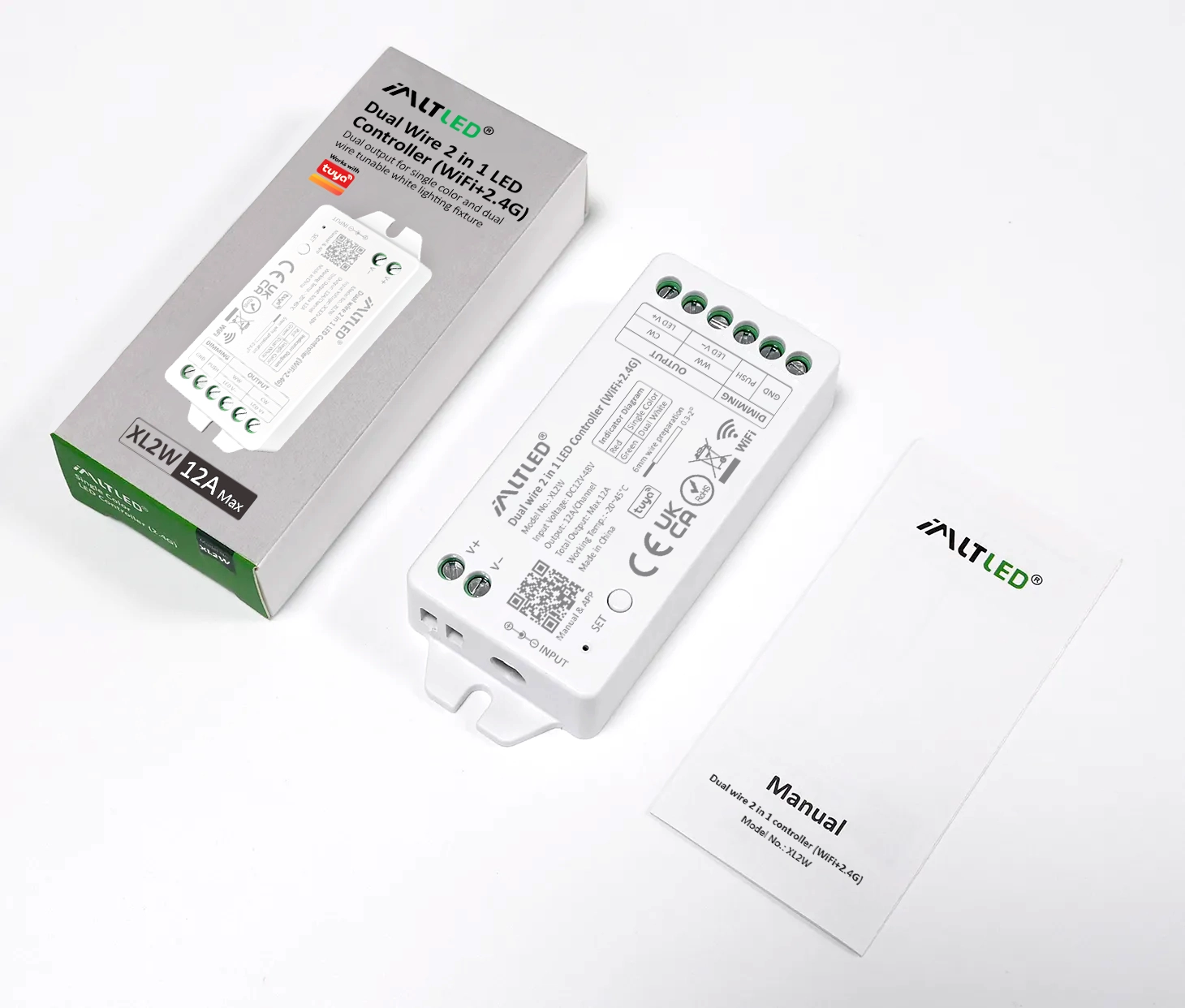

Package
LED Controller: 1PCS
Manual: 1PCS
Quantity: 1PCS
Packing size: 93*42*22mm (L*W*H)
Packaging weight: 0.049KGS
CTN QTY: 200PCS
MEAS: 440*240*210mm (L*W*H)
Volume: 0.0222m³
N.W.: 9.8KGS
G.W.: 10.25KGS
