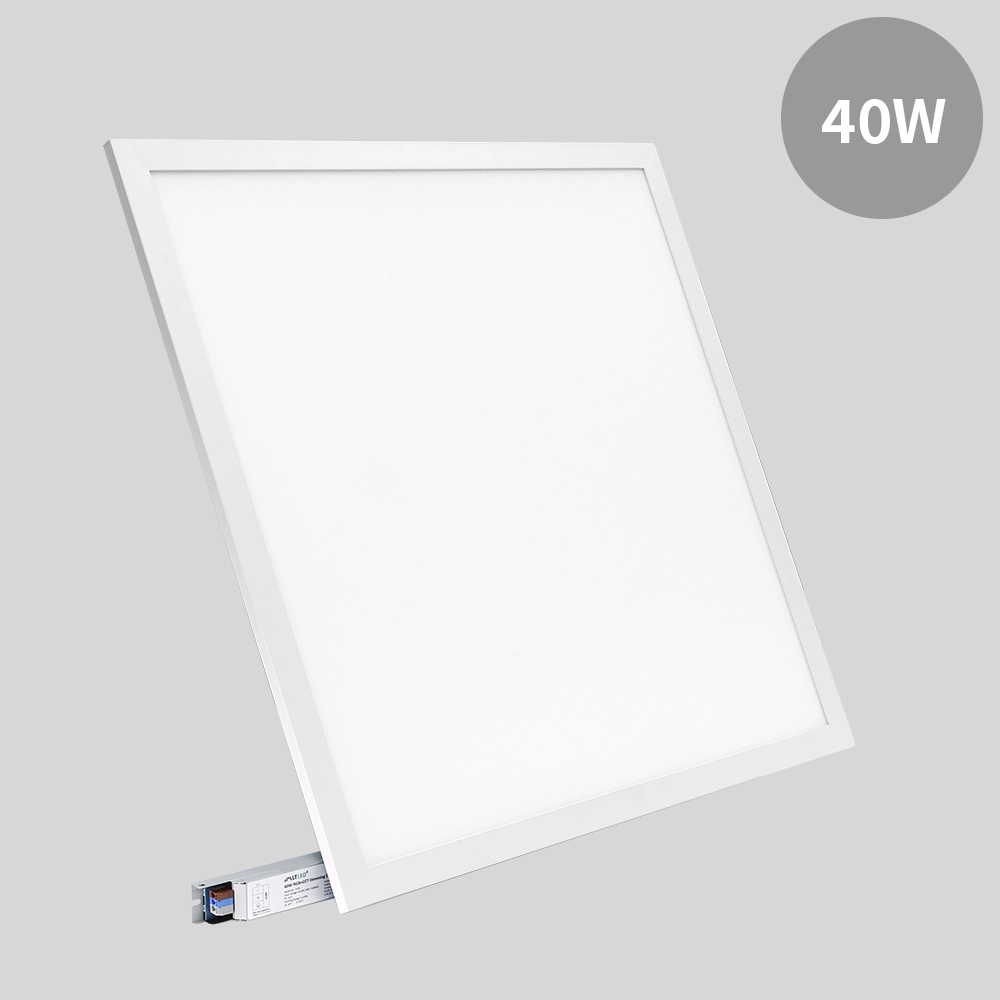

40W RGB+CCT Panel Light (2.4G)
Color temperature and brightness dimmable
Allows flexible control of color temperature and brightness, from warm to cool white and 1%-100% dimming.
DND Mode
Intelligently remembers your light settings. In case of sudden power loss, your lights return to their previous state once power is restored, saving energy and giving you peace of mind.

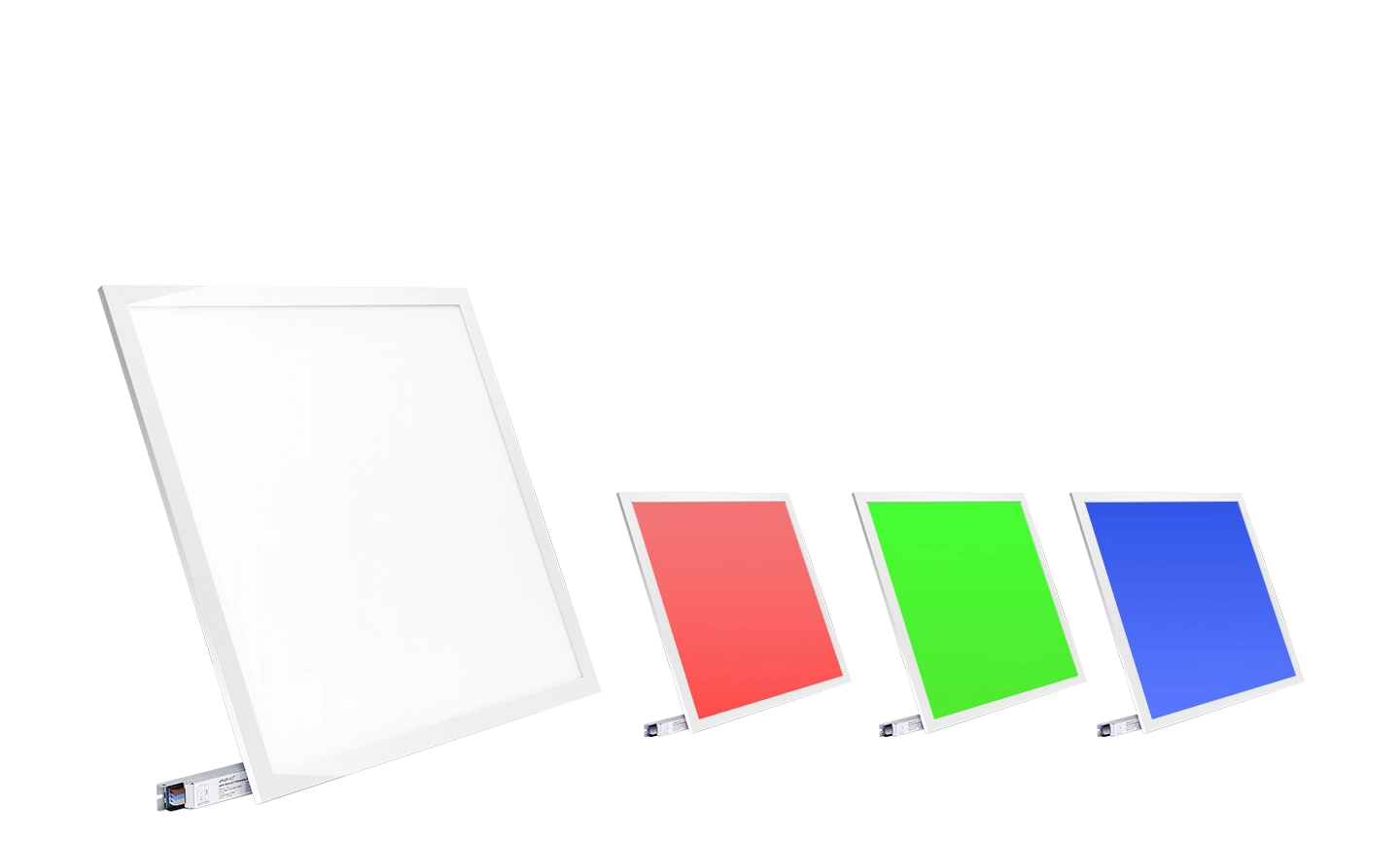

16 Million Colors
Full-Spectrum Color Control — precisely tailor your lighting atmosphere with adjustable RGB, saturation, brightness
9 Dynamic Modes (2.4 GHz RF Remote Only)
Built-in 9 dynamic lighting effects to create a rich light atmosphere.
4 DIY Scenes
Fully save your lights on/off status, color, brightness, and dynamic modes. Recall any preset scene with a single tap, like Movie Mode, Reading Mode, or Sleep Mode, for effortless ambiance control.
Minimum Brightness Setting
Supports 1%–50% minimum brightness setting
DIY Fade-in/Fade-out Time
Supports customizable fade-in/fade-out time from 0–3 seconds, creating a comfortable lighting experience.
2.4 GHz RF Remote Control
Stable 30 m signal with no delay — works through walls.
Automatic Signal Forwarding (2.4 GHz RF Remote Only)
The controller can automatically forward received remote signals to other controllers within a 30 m range, enabling signal relay. The remote control range can be continuously extended.
Automatic Synchronization (2.4 GHz RF Remote Only)
Within a 30 m range and in the same dynamic mode, all lights controlled by the same remote remain perfectly synchronized.
Parameters
Product Name: 40W RGB+CCT Panel Light (2.4G)
| Model No.: | PLL01 |
| Input Voltage: | AC200-240V 50/60Hz |
| PF: | >0.9 |
| CRI: | >80 |
| Luminous Flux: | 3600lm |
| Luminous Efficacy: | 100 lm/W |
| Color Temperature: | 2700K-6500K |
| UGR: | ＜19 |
| Beam Angle: | 160° |
| 2.4G RF Control Distance: | 30m |
| Ta: | 50°C |
| Tc: | 85°C |

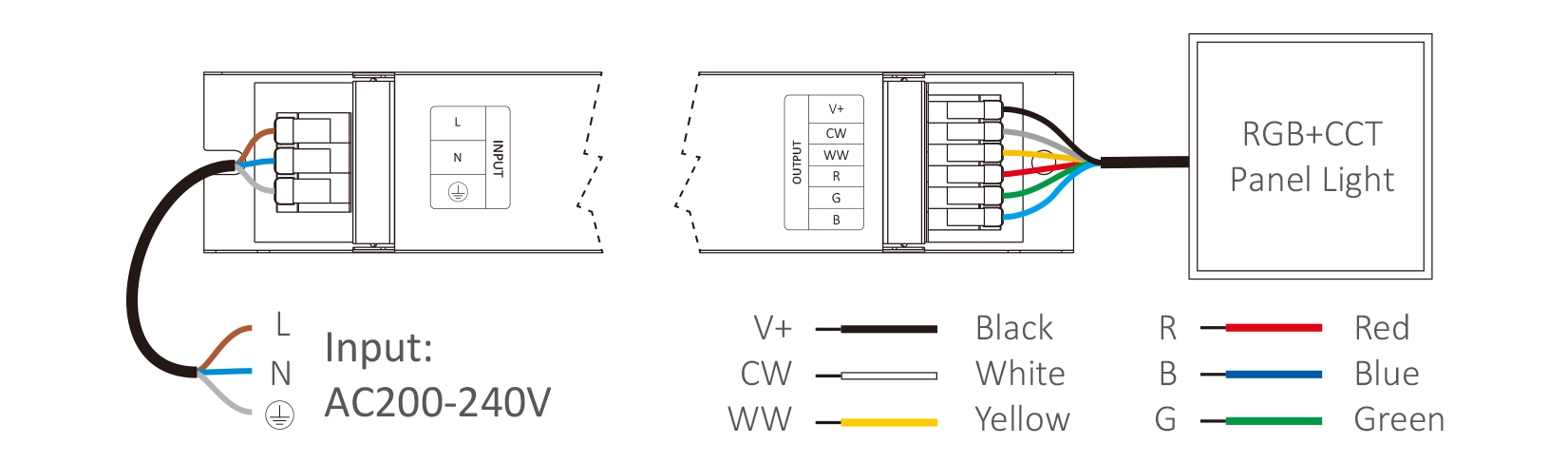

Connection Diagram
