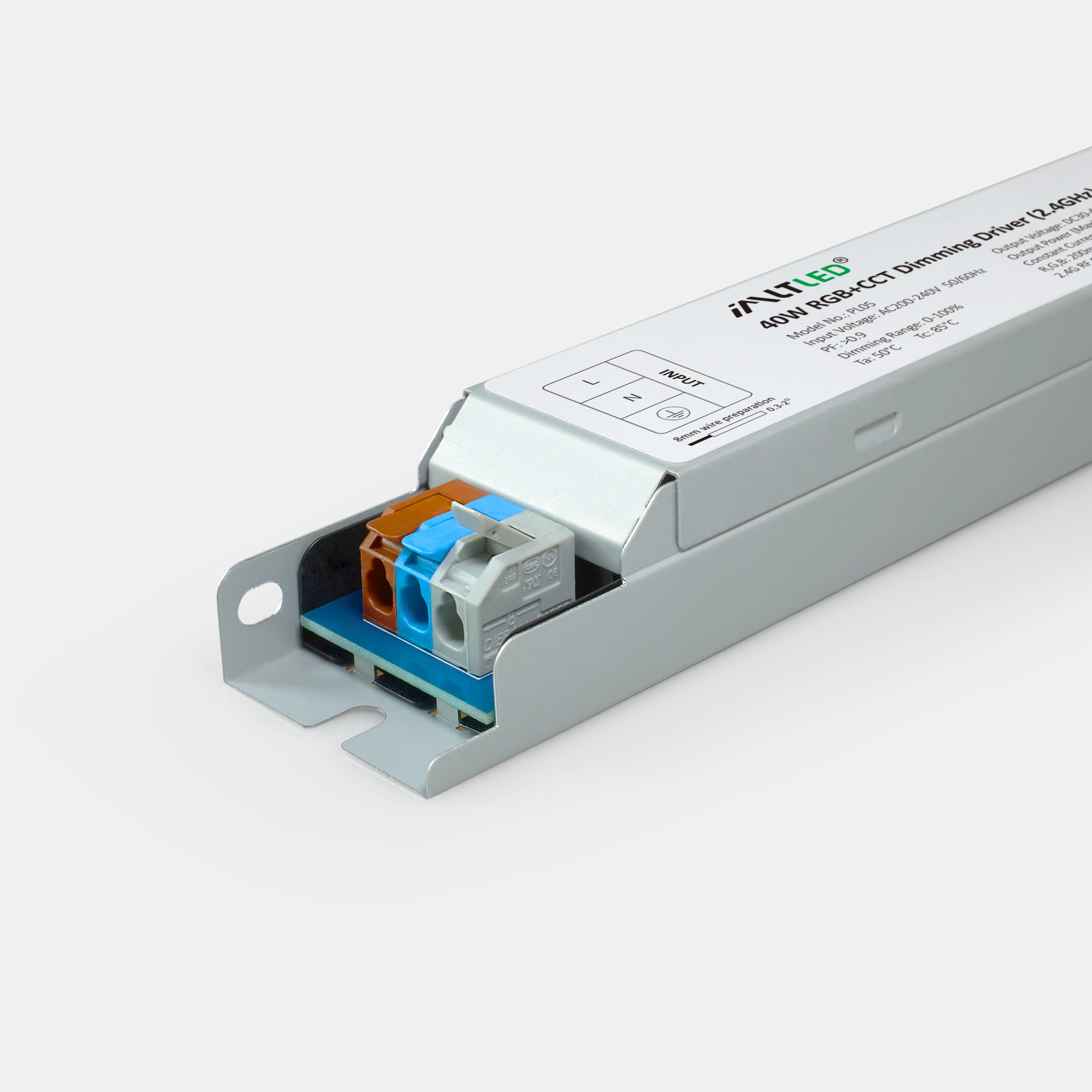

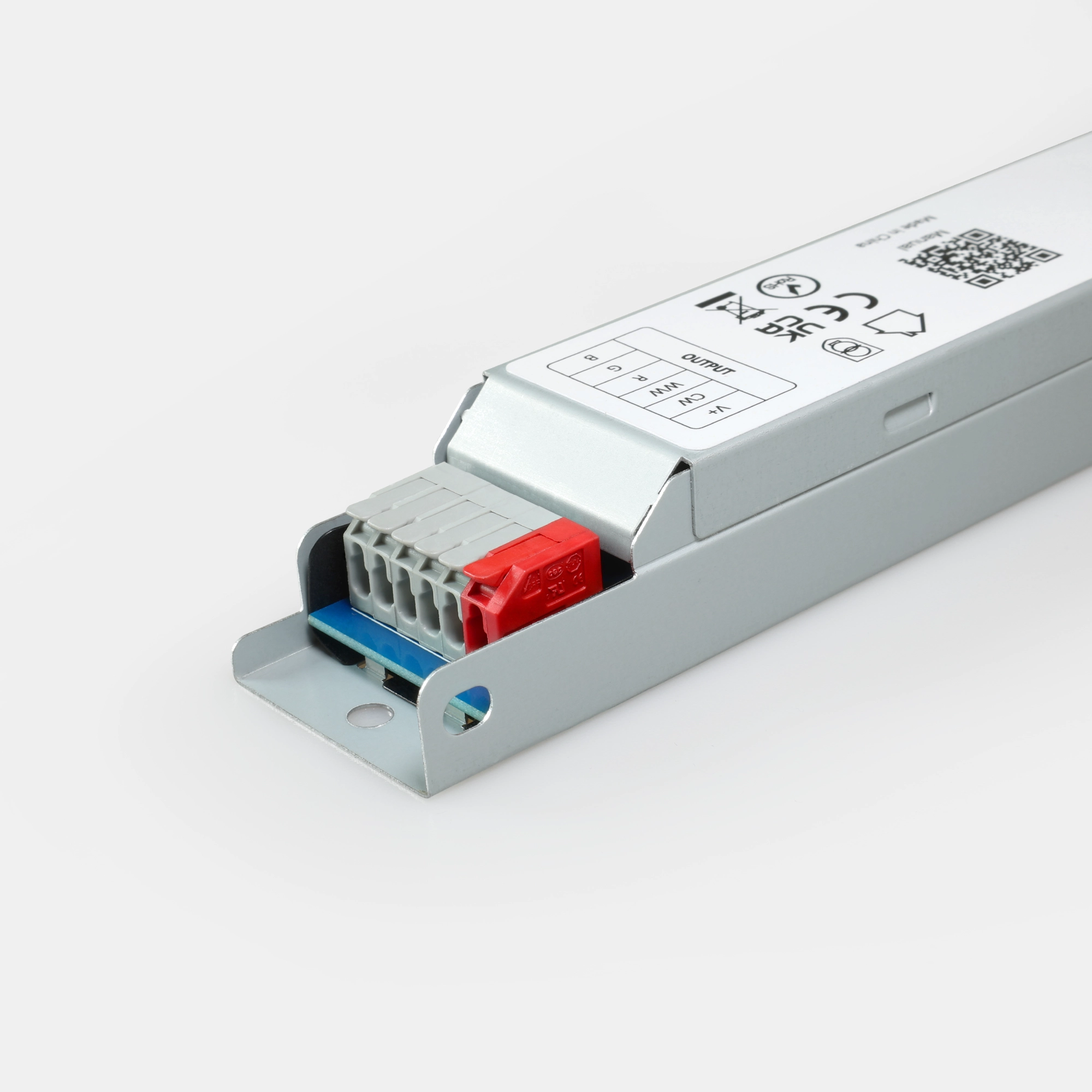

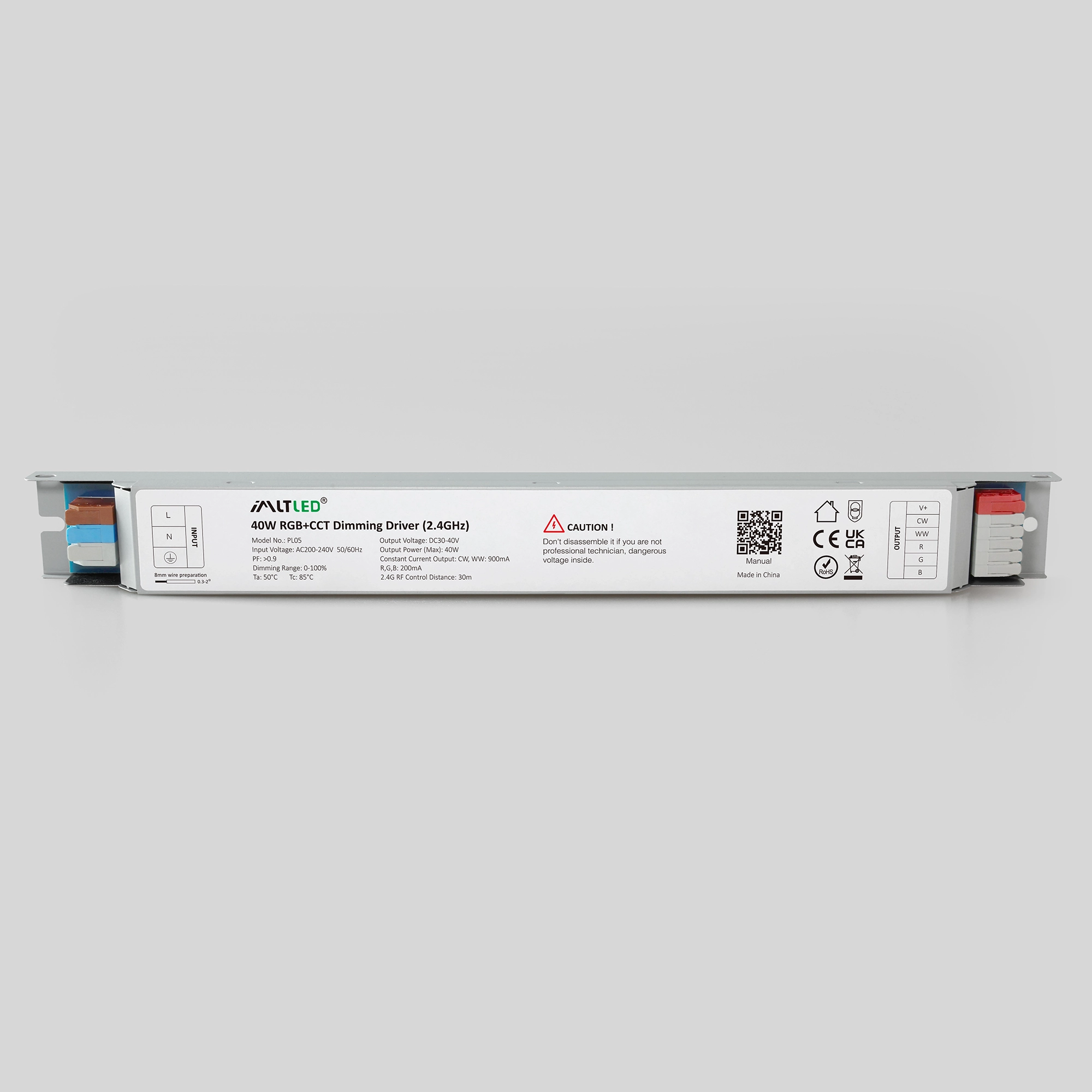

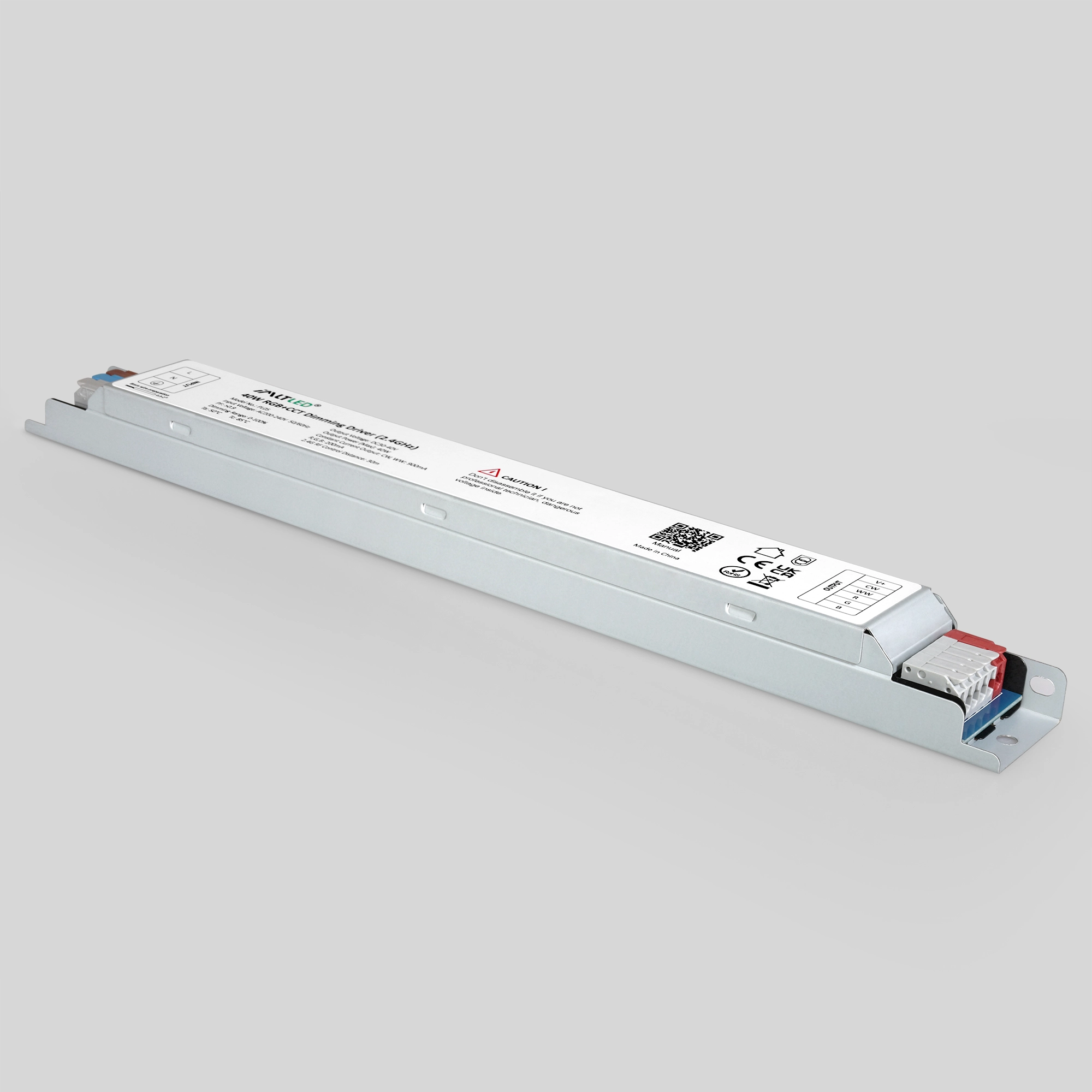

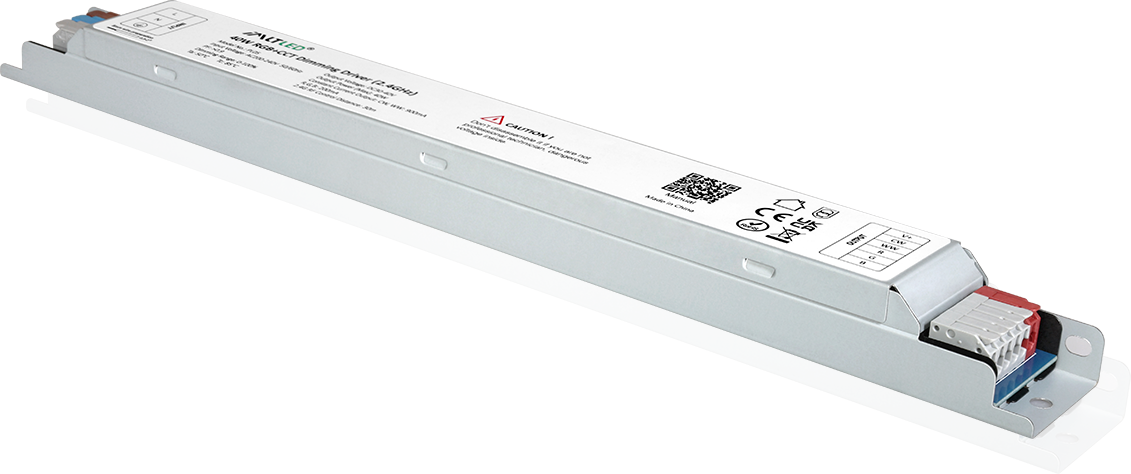

40W RGB+CCT
LED Panel Light Driver (2.4G)
4096-Level Dimming
Delivers ultra-fine, flicker-free adjustment for seamless and comfortable lighting transitions.
DND Mode
Intelligently remembers your light settings. In case of sudden power loss, your lights return to their previous state once power is restored, saving energy and giving you peace of mind.
4 DIY Scenes
Fully save your lights on/off status, color, brightness, and dynamic modes. Recall any preset scene with a single tap, like Movie Mode, Reading Mode, or Sleep Mode, for effortless ambiance control.
Minimum Brightness Setting
Supports 1%–50% minimum brightness setting
DIY Fade-in/Fade-out Time
Supports customizable fade-in/fade-out time from 0–3 seconds, creating a comfortable lighting experience.
2.4 GHz RF Remote Control
Stable 30 m signal with no delay — works through walls.
Automatic Signal Forwarding (2.4 GHz RF Remote Only)
The controller can automatically forward received remote signals to other controllers within a 30 m range, enabling signal relay. The remote control range can be continuously extended.
Automatic Synchronization (2.4 GHz RF Remote Only)
Within a 30 m range and in the same dynamic mode, all lights controlled by the same remote remain perfectly synchronized.
Parameters
Product Name: 40W RGB+CCT LED Panel Light Driver (2.4G)
| Model No.: | PL05 |
| Input Voltage: | AC200-240V 50/60Hz |
| PF: | >0.9 |
| Dimming Range: | 0-100% |
| Ta: | 50°C |
| Output Voltage: | DC30-40V |
| Output Power (Max): | 40W |
| Constant Current Output: | CW,WW:900mA R,G,B:200mA |
| 2.4G RF Control Distance: | 30m |
| Tc: | 85°C |

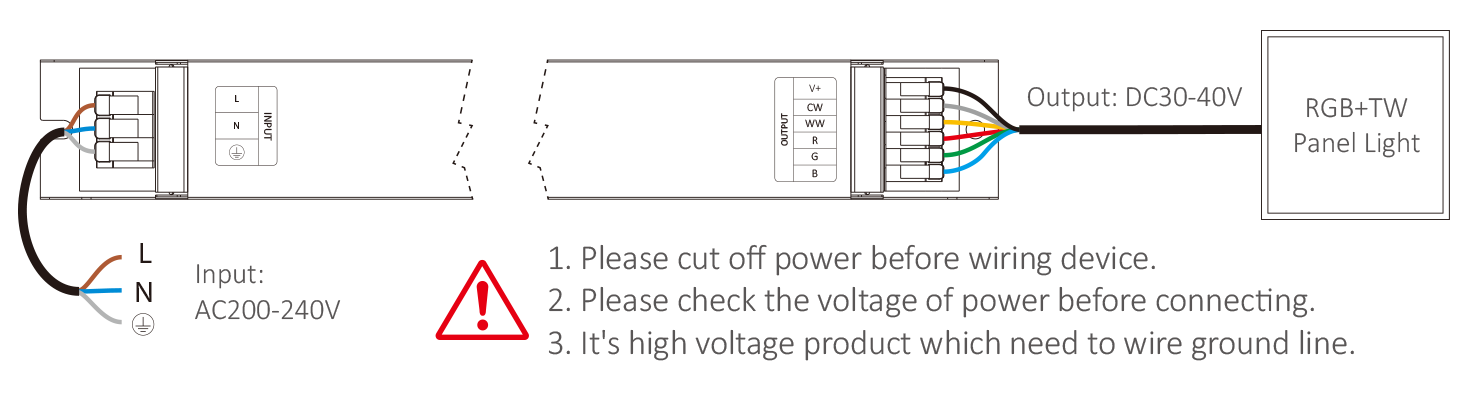

Connection Diagram

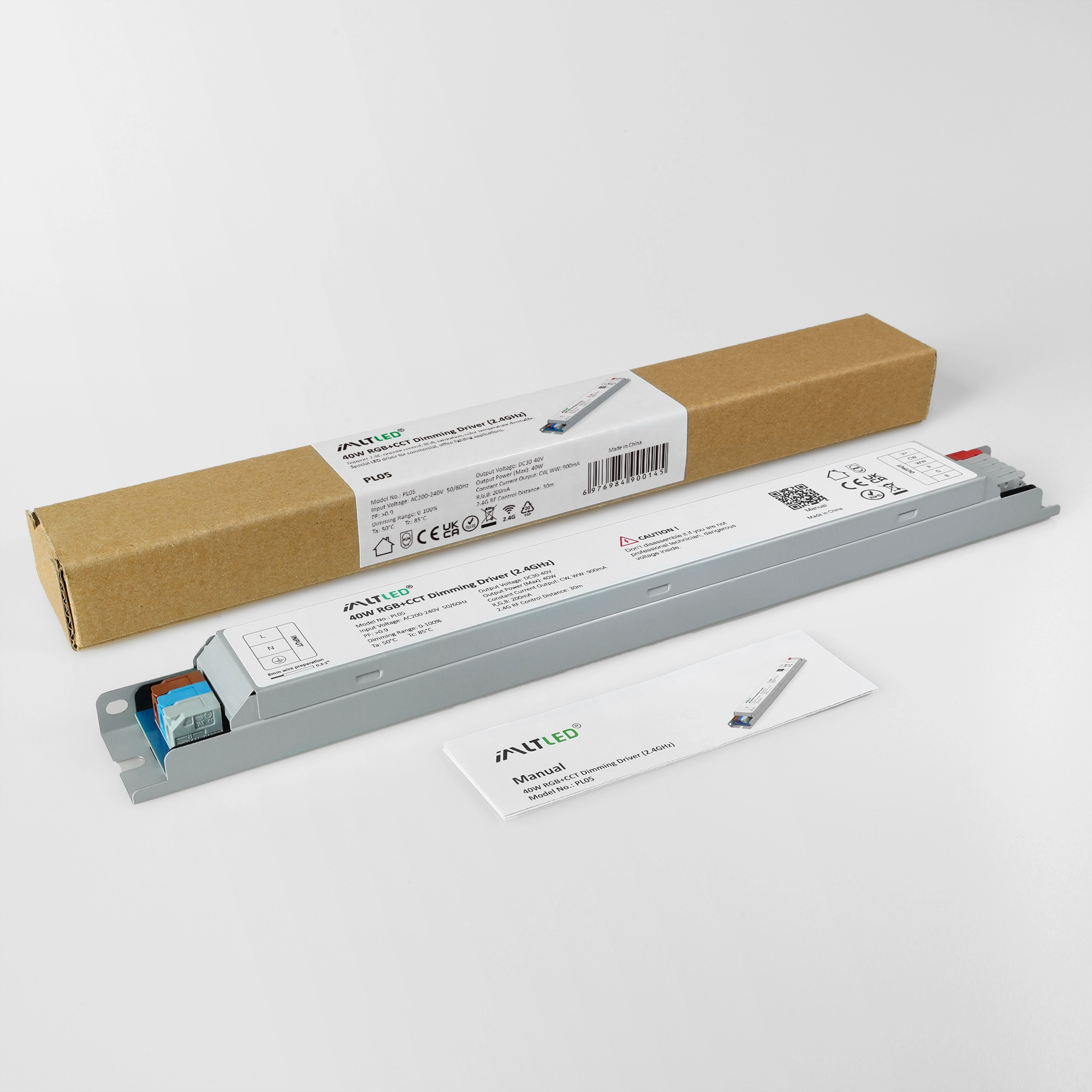

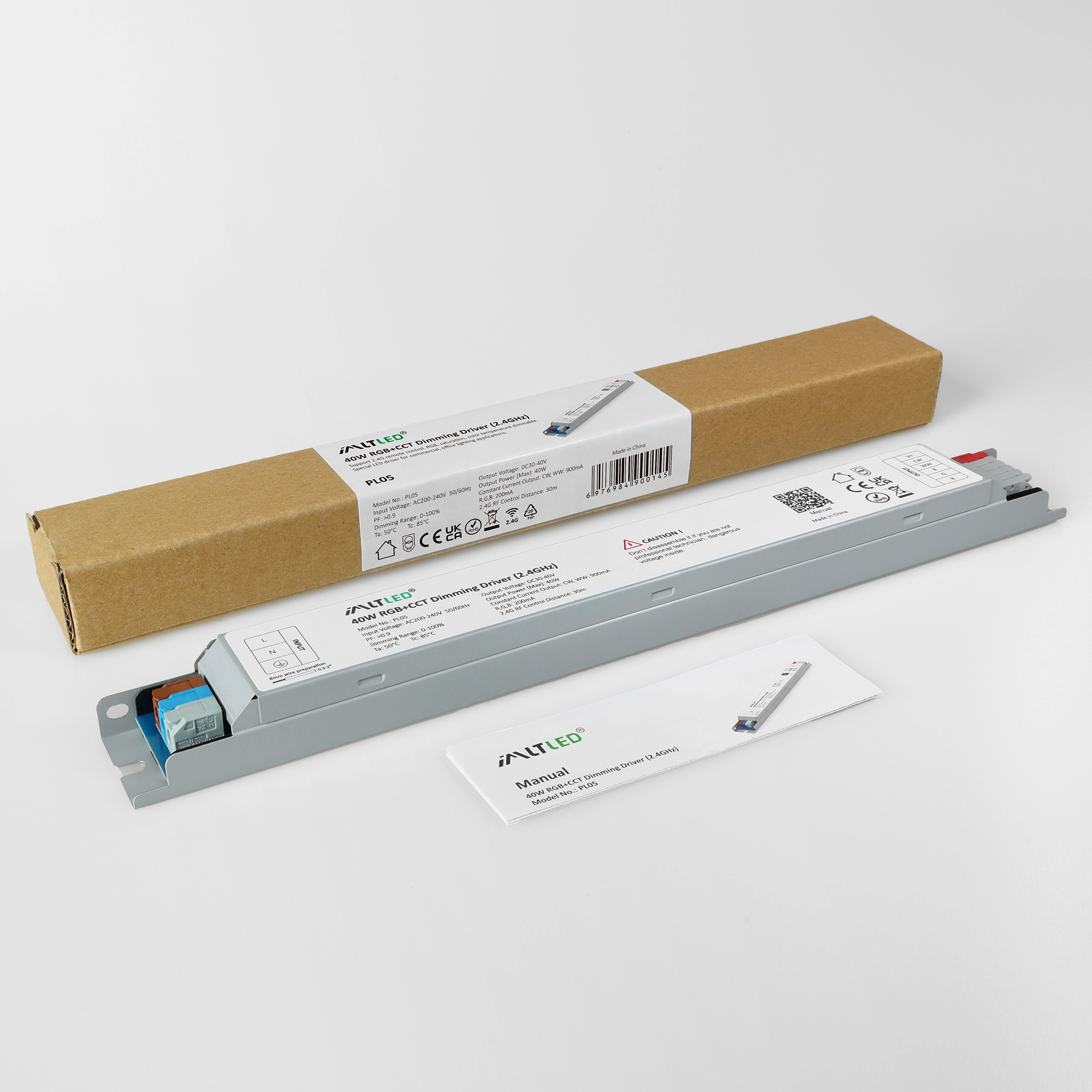

Package
LED Controller: 1PCS
Manual: 1PCS
Quantity: 1PCS

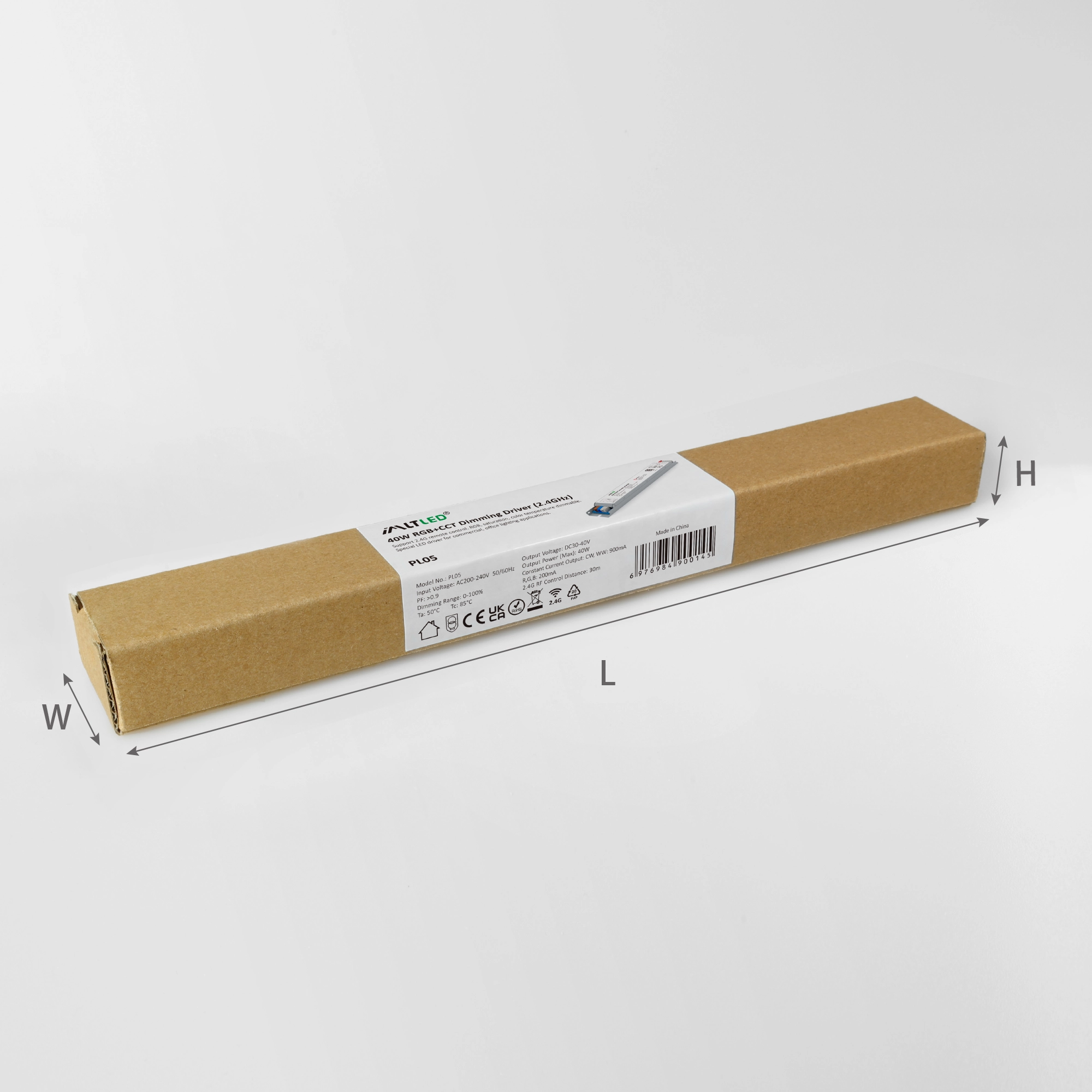

Packing size: 292*36*28mm (L*W*H)
Packaging weight: 0.21KGS
CTN QTY: 100PCS
MEAS: 380*300*320mm (L*W*H)
Volume: 0.0365m³
N.W.: 21KGS
G.W.: 21.5KGS
