AC Triac Dimmer (2.4G+Push)
1-channel output, Max 1.5A.,Trailing edge phase-cut dimming.
DND Mode
Intelligently remembers your light settings. In case of sudden power loss, your lights return to their previous state once power is restored, saving energy and giving you peace of mind.
Overheat Protection
Real-time temp monitoring with auto power adjustment for safe operation.
4 DIY Scenes
Fully save your lights on/off status, color, brightness, and dynamic modes. Recall any preset scene with a single tap, like Movie Mode, Reading Mode, or Sleep Mode, for effortless ambiance control.
Minimum Brightness Setting
Supports 1%–50% minimum brightness setting
DIY Fade-in/Fade-out Time
Supports customizable fade-in/fade-out time from 0–3 seconds, creating a comfortable lighting experience.
2.4 GHz RF Remote Control
Stable 30 m signal with no delay — works through walls.
Automatic Signal Forwarding (2.4 GHz RF Remote Only)
The controller can automatically forward received remote signals to other controllers within a 30 m range, enabling signal relay. The remote control range can be continuously extended.
Parameters
| Product Name: | AC Triac Dimmer (2.4G+Push) |
| Model No.: | TD01 |
| Input/ Output: | AC100-240V 50/60Hz |
| Output Current: | Max 1.5A |
| Output Power: | 150W@110V, 300W@220V |
| Control Signal: | 2.4GHz+PUSH |
| Control Distance: | 30m |
| IP Rate: | IP20 |
| Working Temperature: | -20~45°C |

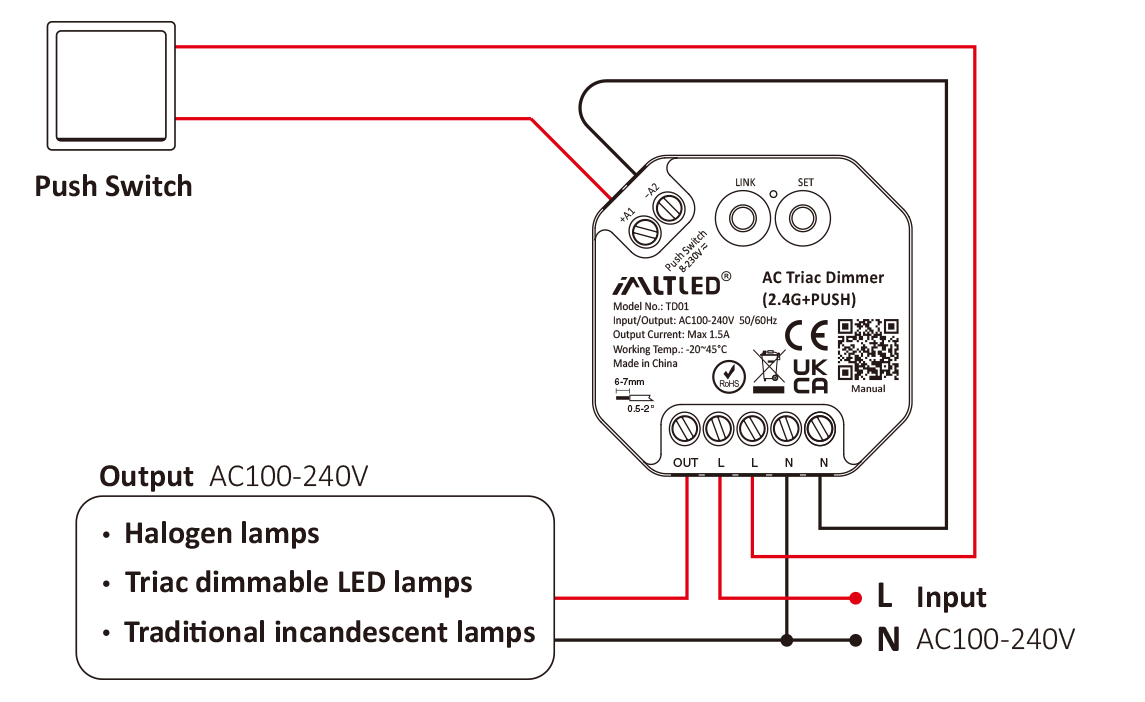

Connection Diagram
Package
LED Controller: 1PCS
Manual: 1PCS
Quantity: 1PCS

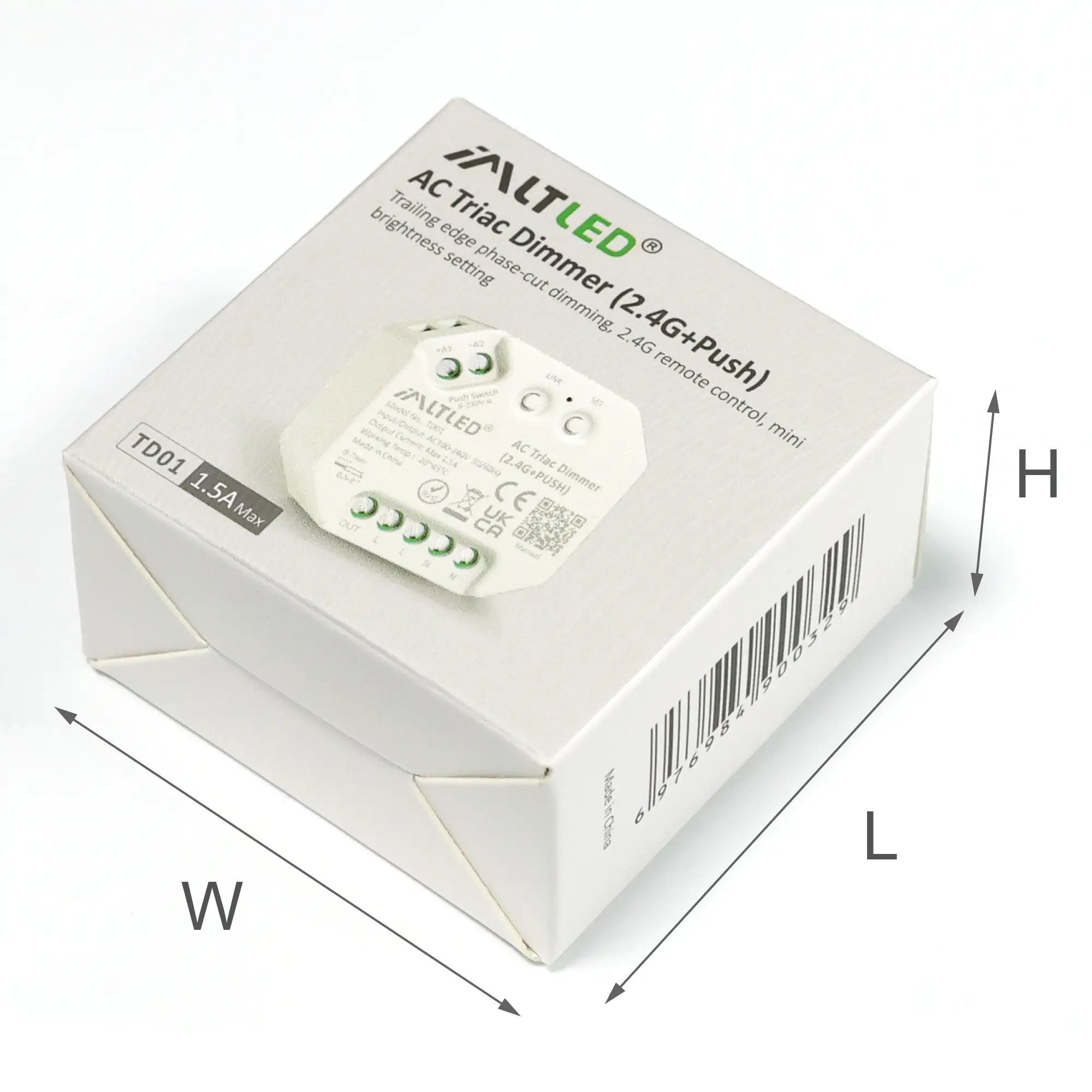

Packing size: 51*51*28mm (L*W*H)
Packaging weight: 0.0525KGS
CTN QTY: 200PCS
MEAS: 295*275*220mm (L*W*H)
Volume: 0.0178m³
N.W.: 11.6KGS
G.W.: 12KGS
