Features #
- This product is made by 2.4G wireless transmitting technology with low consumption and strong ability to resist signal loss
- Support 2.4G remote control
- 16 Millions color / Color temperature / Brightness / saturation dimmable
- Support DND mode
Parameters #
| Product Name | 12W RGB+CCT LED Lawn Light (2.4G) |
| Model No. | LA01 |
| Power | 12W |
| Input Voltage | DC24V |
| Rated Current | Max 0.5A |
| Color temperature | 2700K-6500K |
| CRI | >80 |
| Luminous Flux | 500LM |
| Luminous Efficiency | 45LM/W |
| Illumination Distance | 5m |
| 2.4G RF Distance | 30m |
| Working temperature | -20~45°C |
| Lamp Body Material | Aluminum + PC |

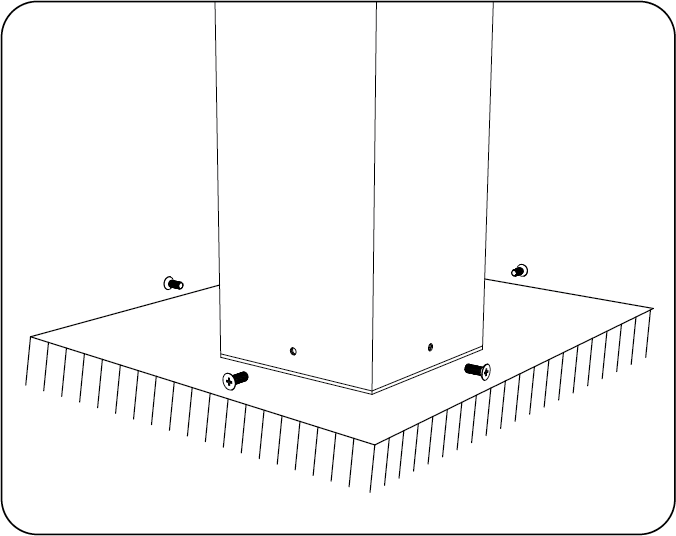

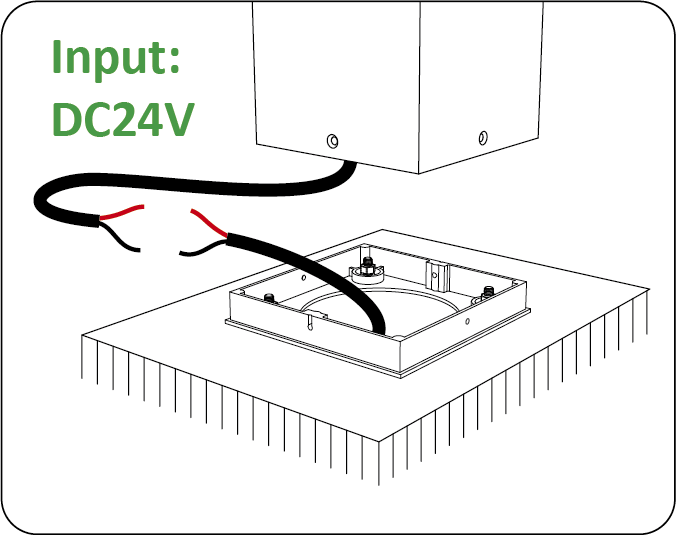

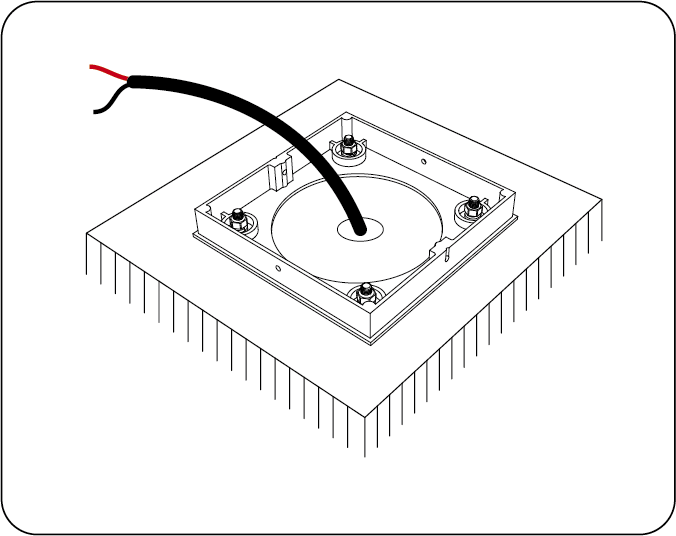

Installation Diagram #
Attention

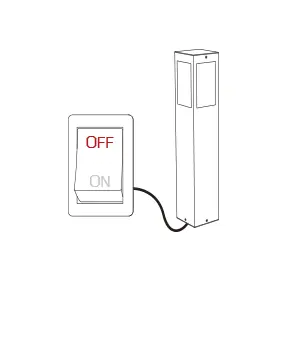

1. Please cut off power before wiring device.
2. Please check the input voltage.
Linking Code #
1. Power off
2. Turn on the light after 10 seconds
3. Short press “ I ” 3 times within 3 seconds
Linking code is done if the lights flashes 3 times slowly.
Don’t use “Master ON” to link code. You only can link lights into one zone on one remote.
Cleaning Code #
1. Power off
2. Turn on the light after 10 seconds
3. Short press “ I ” 5 times within 3 seconds
Cleaning code is done if the lights flashes 6 times quickly.
Dynamic Mode List #
Attention: brightness, saturation and speed are dimmable
| No. | Dynamic mode |
| 1 | Automatical color changing |
| 2 | RGB gradual changing |
| 3 | Color changing randomly |
| 4 | Seven color jumping |
| 5 | Color jumping randomly |
| 6 | Volcano red |
| 7 | Forest green |
| 8 | Ocean blue |
9 | Three color jumping and gradual changing |
Mini Brightness #
- Long press “
” or “
” 6S in any group zones until lighting fixture flashes one time (step out automatically if remote don’t be operated within 5S). - Short press “ ” or “ ” in group zone to set up 10 kinds of brightness level ( 1%, 5%, 10%, 15%, 20%, 25%, 30%, 35%, 40%, 50%).
Short press any button except “OFF” to confirm or step out setting, the master “OFF”can set up all features.
ON/OFF Time #
The light status changes gradually (factory default time is 0.5s).
1.5s: Short press “ON” 1 times and short press “OFF” 5 times within 3 seconds, the setting is done once light flashes 2 times slowly.
0.5s: Short press “OFF” 1 times and short press “ON” 5 times within 3 seconds, the setting is done once light flashes 2 times quickly.
Attention #
- The lighting fixtures will be heating on working, please do not cover the lighting housing.
- Don’t disassemble it if you are not expert.
- Don’t use it in metallic or magnetic area.
